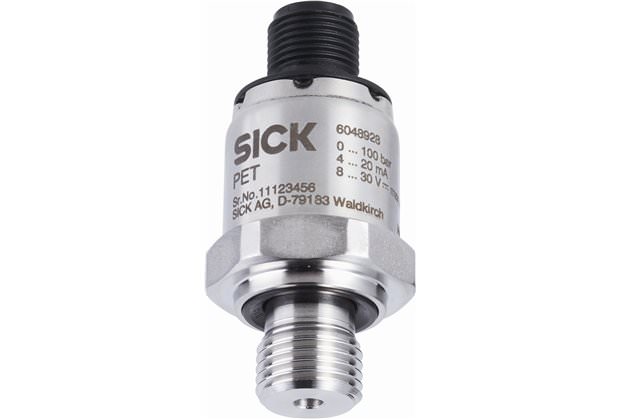

Трансмиттер давления Pressure transmitter - PET-1RB010G1NSAMA - 6049221 (sick160130)

Поставляем Трансмиттер давления Pressure transmitter - PET-1RB010G1NSAMA - 6049221 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick160130

Производитель

Sick

Категория

Трансмиттеры давления

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Каталитический элемент Honeywell SPXCDXSFXSS

Смотреть ещё

Описание

Описание Pressure transmitter - PET-1RB010G1NSAMA - 6049221

Features

Pressure type:	Gauge pressure
Measuring range:	0 bar ... 10 bar
Process temperature:	-30 °C ... +100 °C
Output signal:	4 mA ... 20 mA, 2-wire
Maximum ohmic load RA:	? (L+ - 7 V) / 0.02 A [Ohm] with current output signal
Initialization time:	15 ms

Performance

Accuracy:	? ± 1.2 % of span (at room temperature)
Non-linearity:	? ± 0.6 % of span (best fit straight line, BFSL)
Response time:	< 2 ms
Long-term drift/one-year stability:	? ± 0.3 % of span (per year)
Temperature error:	? ± 1.5 % of span
Rated temperature range:	0 °C ... +80 °C
Service life:	Minimum 100 Mio. life cycles
Measurement deviation of zero signal:	? ± 0.7 % of span

Mechanics/electronics

Process connection:	G ? A according to DIN 3852-E
Wetted parts:	Stainless steel 13-8 PH, Stainless steel 316L
Seal:	NBR
Pressure port:	3.5 mm Standard
Housing material:	Stainless steel 316L, PBT GF30
Enclosure rating:	IP 67 (according to IEC 60529), for round connector 1)

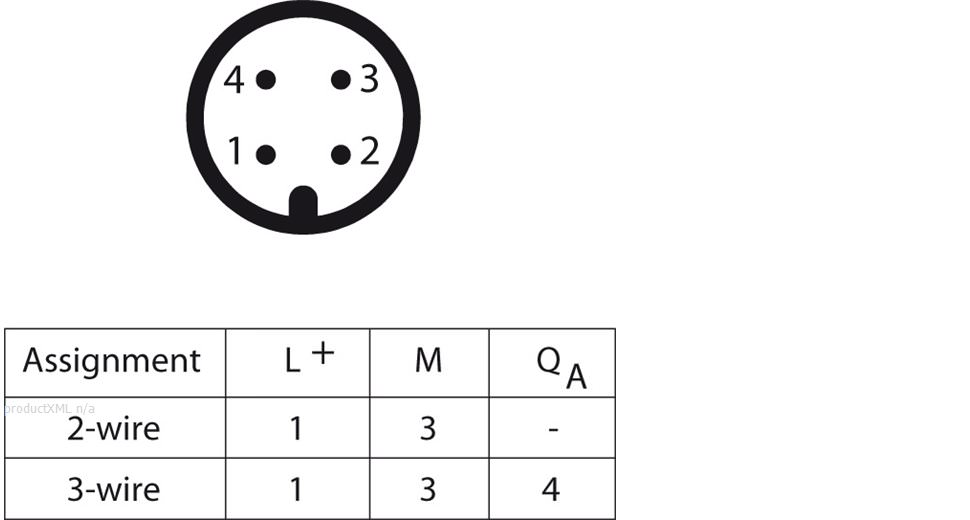

Electrical connection:	Round connector M12 x 1, 4-pin
Supply voltage:	8 V DC ... 30 V DC 2)
Isolation voltage:	750 V DC
CE-conformity:	2004/108/EC, EN 61326-1 emission (group 1, class B) and interference immunity (industrial application) and pressure equipment directive 97/23/EC
Reference conditions:	According to IEC 61298-1
Maximum power consumption:	25 mA (signal current, maximum 25 mA)
Protection class:	III
Overvoltage protection:	36 V DC
Short-circuit protection:	Output QA towards M
Reverse polarity protection:	L+ towards M
footnote	1) The enclosure rating classes specified only apply while the thermometer is connected with female connectors that provide the corresponding enclosure rating. 2) Electrical circuit in accordance with section 9.3 of UL/EN/IEC 61010-1 or an LPS to UL/EN/ IEC 60950-1 or class 2 in accordance with UL1310/UL1585 (NEC or CEC). The power supply must be suitable for operation above 2,000 m should the pressure transmitter be used at this altitude.

Ambient data

Storage temperature:	-30 °C ... +100 °C
Shock load:	40 g (6 ms) according to IEC 60068-2-27 (mechanical shock)
Vibration load:	20 g (20 Hz ... 2000 Hz, 120 min) according to IEC 60068-2-6 (vibration at resonance)
Ambient temperature operation:	-30 °C ... +100 °C
