Датчик расстояния OD Mini OD Mini, OD Mini Prime - OD1-B015C05I25 - 6050520 (sick160239)

Поставляем Датчик расстояния OD Mini OD Mini, OD Mini Prime - OD1-B015C05I25 - 6050520 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick160239

Производитель

Sick

Категория

Датчики расстояния OD Mini

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание OD Mini, OD Mini Prime - OD1-B015C05I25 - 6050520

Performance

Measuring range:	10 mm ... 20 mm
Resolution 1):	1 µm
Repeatability 2) 3):	3 µm
Linearity 4) 5):	± 10 µm
Response time 6):	2 ms / 4 ms / 8 ms / 16 ms / auto
Measuring frequency:	2 kHz / 1 kHz / 500 Hz / 250 Hz / auto
Light source:	Laser, red
Typ. light spot size (distance):	700 µm x 500 µm (15 mm)
Additional function:	Automatic or manual sensitivity adjustment, Teach-in of analog outputs, Teach-in of switching outputs, Switching output invertible, Averaging 1 ... 512x, Multifunctional input: laser-off / external teach-in / trigger, Switching mode: distance to object (DtO), Switching mode: window (Wnd), Switiching mode: object between sensor and background (ObSB)
Laser class:	1 (EN 60825-1) 7)
footnote	1) 2) Averaging function set to: 512 3) Constant ambient conditions 4) Measurement on 90 % remission (ceramic, white) 5) For best performance consider warm up time ? 5 minutes 6) At fixed sensitivity setting and averaging = 1. With automatic sensititvity setting and sample rating 500 µs: 2 ... 7.5 ms response time/sample rating 1,000 µs: 4 ... 15 ms response time 7) Wavelength: 655 nm, max. output: 390 µW (laser class 1) / < 1 mW (laser class 2)

Interfaces

Data interface:	1 x 4 mA ... 20 mA (< 300 ?)
Output type:	1 x PNP/NPN, selectable
Multifunctional input (MF) 1):	1 x
footnote	1) MF can be used as laser-off, trigger, external teach-in or deactivated

Mechanics/electronics

Electrical connection:	Cable with connector, M12, 5-pin, 30 cm
Supply voltage Vs:	DC 12 V (-5 %) ... DC 24 V (+10 %)
Power consumption 1):	? 1.92 W
Warm-up time:	? 5 min

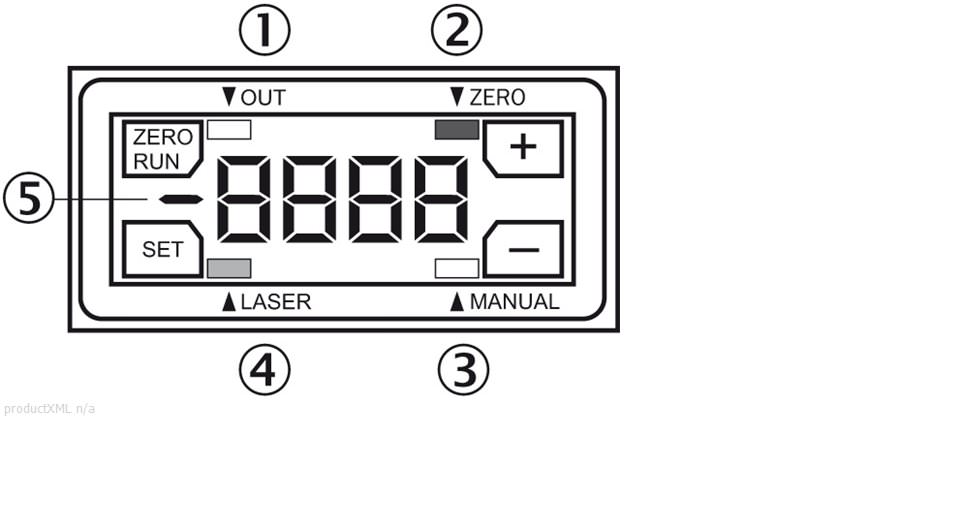

Indication:	4-digit 7-segment display (plus 4 LEDs for status display)
Control elements:	4 buttons
Weight:	40 g
Dimensions:	44.4 mm x 31 mm x 17 mm
Housing material:	Aluminum housing with PPSU lens
footnote	1) Without load, with current output

Ambient data

Enclosure rating:	IP 67
Protection class:	III
Ambient temperature:	Operation: -10 ... +40 °C, Storage: -20 ... +60 °C
Min. rel. humidity (not condensing):	35 %
Max. rel. humidity (not condensing):	95 %
Temperature drift:	± 0.08 % FS/K (FS = Full Scale = Measuring range of sensor)
Vibration resistance:	10 Hz ... 55 Hz (amplitude 1.5 mm, x-, y-, z-axis 2 hours each)
Shock resistance:	50 G (x-, y-, z-axis 3 times each)
Typ. ambient light safety:	Artificial light: ? 3,000 lx, Sunlight: ? 10,000 lx
