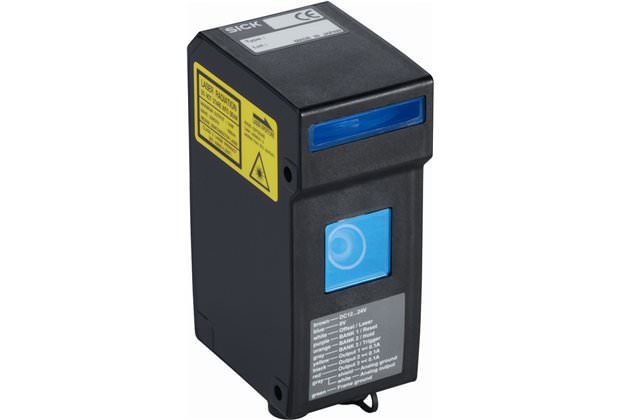

Датчик расстояния Profiler™ Profiler™, Profiler™ 2 - PRO2-P100B25A1 - 6052873 (sick160412)

Поставляем Датчик расстояния Profiler™ Profiler™, Profiler™ 2 - PRO2-P100B25A1 - 6052873 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick160412

Производитель

Sick

Категория

Датчики расстояния Profiler™

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание Profiler™, Profiler™ 2 - PRO2-P100B25A1 - 6052873

Performance

Measuring range:	100 mm, ± 25 mm
Resolution 1) 2):	X-direction 25 µm, Z-direction 2 µm
Linearity 3) 4) 5):	X-direction ± 1 % FS, Z-direction ± 0.1 % FS
Response time 6):	5 ms
Light source:	Laser, red
Typ. light spot size (distance):	0.3 mm x 32 mm
Additional function:	Sensitivity (adjustable), Measurement functions (average, peak height, bottom height, width, peak position, bottom position, edge position, edge count, tilt, size, length, diameter), Averaging 1 ... 1,023, Timer (on/off delay, one shot, off)
Accuracy:	X-direction ± 5 % FS, Z-direction ± 1 % FS
Laser class:	2 (EN 60825-1 / 21 CFR 1040.10) 7)
Measuring width (at measuring distance):	17 mm (75 mm), 22 mm (100 mm), 27 mm (125 mm)
footnote	1) Typical value; actual value depends on settings and environmental conditions. For details see field of view 2) 4) Measurement on 90 % remission (ceramic, white) 3) Constant ambient conditions 5) FS = Full Scale = Measuring range of sensor 6) Typical value, high-res mode 7) Wavelength: 655 nm, max. output: 1 mW

Interfaces

Data interface:	RS-485 1)
Output type 2):	3 x PNP
Analog output:	1 x 4 mA ... 20 mA (< 300 ?) 3)
External input:	Selectable from blank, trigger, hold, reset, laser off and offset
footnote	1) Half-duplex (9.6 kbit/s ... 4 Mbit/s) 2) Maximum current output 100 mA 3) 24 mA for measuring out of range

Mechanics/electronics

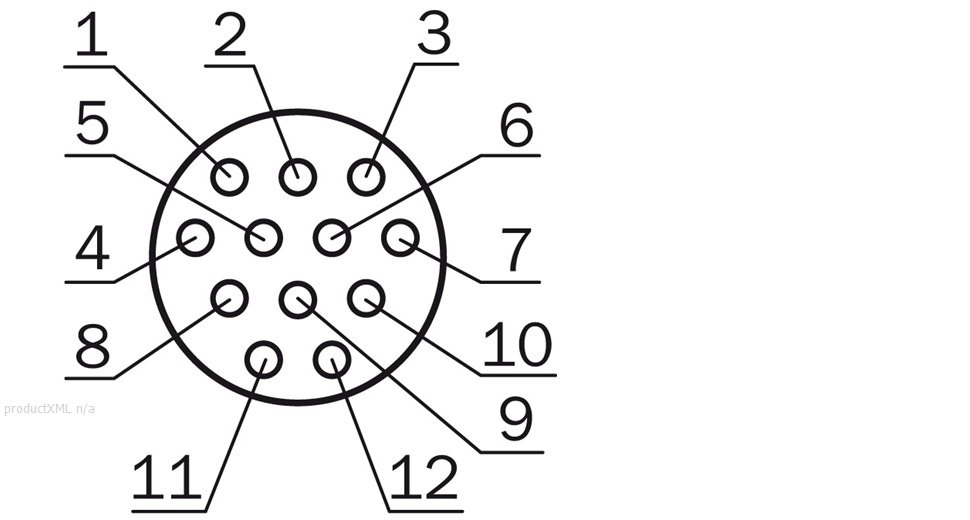

Electrical connection:	Female connector, HRS, 12-pin (I/O, power supply)
Supply voltage Vs 1):	DC 12 V (-5 %) ... DC 24 V (+10 %)
Power consumption:	? 180 mA
Warm-up time:	? 30 min
Indication:	2 LEDs (operational status, laser on/off), Dot matrix display
Weight:	Ca. 300 g
Dimensions:	40 mm x 60 mm x 94.5 mm
Housing material:	Die-cast zinc Polycarbonat
footnote	1) When using analog voltage output reduced to DC 18 V (-5 %) ... DC 24 V (+10 %)

Ambient data

Enclosure rating:	IP 67
Protection class:	III
Ambient temperature:	Operation: -10 ... +40 °C, Storage: -20 ... +60 °C
Max. rel. humidity (not condensing):	85 %
Temperature drift:	± 0.05 % FS/K (FS = Full Scale = Measuring range of sensor)
Vibration resistance:	10 Hz ... 55 Hz (amplitude 1.5 mm, x-, y-, z-axis 2 hours each)
Shock resistance:	50 G (x-, y-, z-axis 3 times each)
Typ. ambient light safety:	Artificial light: ? 3,000 lx, Sunlight: ? 10,000 lx
