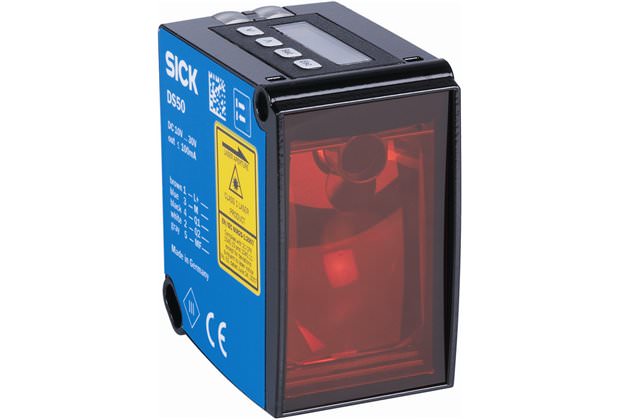

Датчик расстояния Dx50 Dx50, DL50 Hi - DL50-P2228 - 1058986 (sick149739)

Поставляем Датчик расстояния Dx50 Dx50, DL50 Hi - DL50-P2228 - 1058986 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick149739

Производитель

Sick

Категория

Датчики расстояния Dx50

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Endress+Hauser Deltabar PMD75--DFMV7/115

Смотреть ещё

Описание

Описание Dx50, DL50 Hi - DL50-P2228 - 1058986

Performance

Measurement range 1):	200 mm ... 50,000 mm, on reflective tape 'Diamond Grade'
Resolution:	0.1 mm
Repeatability 2) 3) 4):	0.5 mm / 0.3 mm / 0.25 mm
Accuracy 5):	± 3 mm
Response time 6) 7):	10 ms / 40 ms / 160 ms
Light source:	Laser, red
Typ. light spot size (distance):	15 mm x 15 mm (10 m)
Additional function:	Switch-off display Unique measurement value Set moving average fast/medium/slow Set hysteresis Crosstalk safety Switching mode: distance to object (DtO) Serial data output: continuous, on request Lock user interface Reset to factory default Set data transmission rate: 19,200, 38,400, 57,600, 115,200 bps Set distance resolution for the SSI data output: 0.0625 mm / 0.1 mm / 0.125 mm / 1 mm Teach-in, scaling and inversion of switching output Multifunctional in- and output: laser off, external teach, switching output 2, inactive
Laser class:	1 (EN 60825-1) 8)
Laser service life (MTTF at 25 °C):	100,000 h
Output time 9):	2.5 ms
footnote	1) On reflective tape 'Diamond Grade' 2) Equivalent to 1 ? 3) 6) Dependent on the set average: fast/medium/slow 4) Typical value 5) 200 mm ... 4,000 mm: ? ± 5 mm 7) Lateral entry of object into measuring range 8) Wavelength: 658 nm; max. output: 80 mW; pulse duration: 2.5 ns; pulse repetition rate: 1/240 9) Continuous change of distance in measuring range

Interfaces

Output type 1) 2) 3):	2 x / 1 x PNP (100 mA)
Hysteresis:	1 mm ... 1,000 mm
Data interface:	SSI
Multifunctional input (MF) 4) 5) 6):	? / 1 x
footnote	1) Output Q short-circuit protected 2) PNP: HIGH = VS - (< 2.5 V) / LOW = 0 V 3) 4) Dependent on the set function MF: switching output 2 / laser off, external teach 5) Response time ? 60 ms 6) PNP: HIGH = VS/ LOW = ? 2.5 V

Mechanics/electronics

Supply voltage Vs 1):	DC 10 V ... 30 V
Ripple 2):	? 5 Vpp
Power consumption 3):	? 2.1 W
Initialization time:	? 250 ms
Warm-up time:	? 15 min
Housing material:	Die-cast zinc housing (ZNAL4CU1) acrylic glass (PMMA)

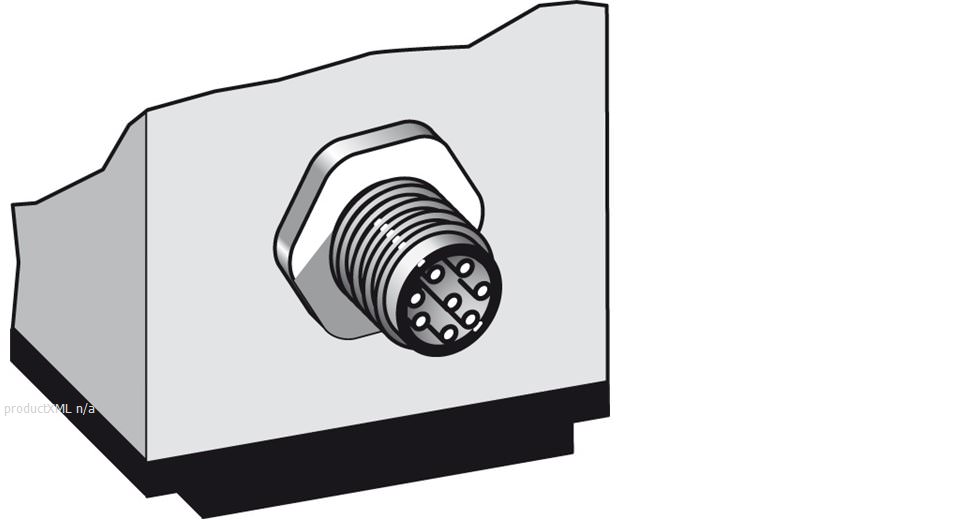

Connection type:	Male connector, M12, 8-pin
Indication:	2 x LED, LC display
Weight:	200 g
footnote	1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A 2) May not fall short of or exceed VS tolerances 3) Without load

Ambient data

Enclosure rating:	IP 65
Protection class:	III
Ambient temperature:	Operation: -30 ... +65 °C, Storage: -40 ... +75 °C
Max. rel. humidity (not condensing):	? 95 %
Vibration resistance:	EN 60068-2-6 / EN 60068-2-64
Shock resistance:	EN 60068-2-27
Typ. ambient light safety:	40 klx
