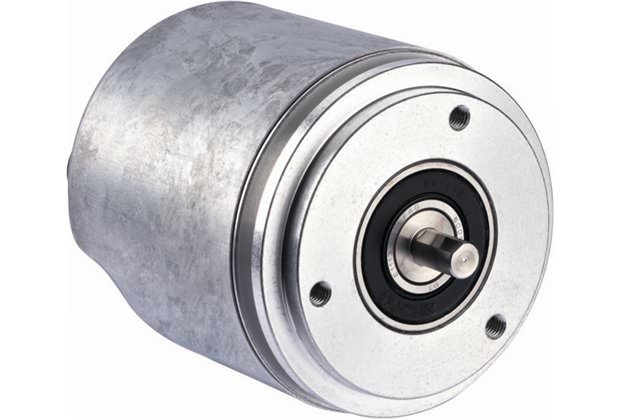

Абсолютный энкодер AFS/AFM60 AFS/AFM60 PROFINET - AFM60A-S1NB018X12 - 1059040 (sick149766)

Поставляем Абсолютный энкодер AFS/AFM60 AFS/AFM60 PROFINET - AFM60A-S1NB018X12 - 1059040 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick149766

Производитель

Sick

Категория

Абсолютные энкодеры AFS/AFM60

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание AFS/AFM60 PROFINET - AFM60A-S1NB018X12 - 1059040

Performance

Max. number of steps per revolution:	262,144
Max. number of revolutions:	4,096
Resolution power:	262,144 x 4,096
Resolution:	18 bit x 12 bit
Error limits:	? 0.03 °
Repeatability (Ta not constant):	? 0.002 °
Measuring step deviation:	± 0.002 °
Initialization time:	6 s

Механические параметры

Mechanical interface:	Solid shaft, Servo flange
Shaft diameter:	6 mm
Mass:	0.2 kg
Start up torque:	0.5 Ncm (+20 °C)
Operating torque:	0.3 Ncm (+20 °C)
Permissible Load capacity of shaft:	40 N (axial), 80 N (radial)
Maximum operating speed:	9,000 /min 1)
Moment of inertia of the rotor:	6.2 gcm?
Bearing lifetime:	3.0 x 10^9 revolutions
Max. angular acceleration:	500,000 rad/s?
Shaft material:	Stainless steel
Flange material:	Aluminum
Type of mounting shaft:	Solid shaft, servo flange
footnote	1) Self warming of 3.3 K per 1000 revolutions/min when applying note working temperature range

Электрические параметры

Operating voltage range:	10 V DC ... 30 V DC
MTTFd: mean time to dangerous failure:	80 a (EN ISO 13849-1) 1)
Connection type:	3 x connector M12, 4-pin, axial
footnote	1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

Interfaces

Electrical interface:	PROFINET
Bus interface:	PROFINET IO/ RT Class B
Data transmission rate (baud rate):	10 Mbit/s / 100 Mbit/s
Encoder profile:	V4.1 class3
RPI (requested packet interval):	2 ms ... 750 ms
Endless operating functionality:	1

Ambient data

EMC:	(according to EN 61000-6-2 and EN 61000-6-3) 1)
Enclosure rating:	IP 65 (according to IEC 60529), shaft side, IP 67 (according to IEC 60529), housing side 2)
Permissible relative humidity:	90 % (condensation of the optical scanning not permitted)
Working temperature range:	-30 °C ... +85 °C
Storage temperature range:	-40 °C ... +100 °C, without package
Resistance to shocks:	100 g, 6 ms (according to EN 60068-2-27)
Resistance to vibration:	30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
footnote	1) The EMC according to the standards quoted is achieved if screened cables are used. 2) With mating connector fitted
