Абсолютный энкодер AFS/AFM60 AFS/AFM60 SSI - AFS60A-BDAA262144 - 1038221 (sick145940)

Поставляем Абсолютный энкодер AFS/AFM60 AFS/AFM60 SSI - AFS60A-BDAA262144 - 1038221 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick145940

Производитель

Sick

Категория

Абсолютные энкодеры AFS/AFM60

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание AFS/AFM60 SSI - AFS60A-BDAA262144 - 1038221

Performance

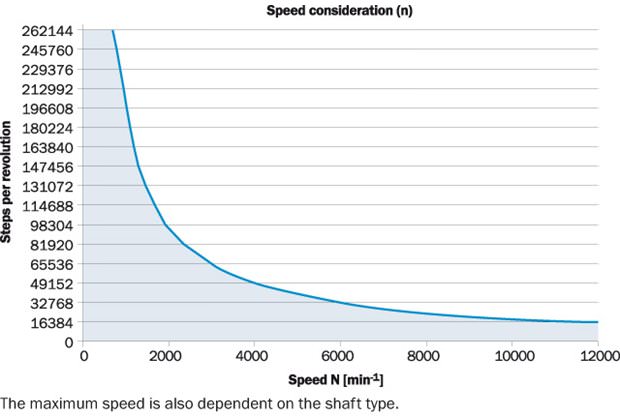

Max. number of steps per revolution:	262,144
Max. number of revolutions:	1
Resolution power:	262,144 x 1
Error limits:	± 0.03 °
Repeatability (Ta not constant):	0.002 °
Measuring step deviation:	± 0.002 °
Measuring step:	0.014 ° 360 ° / number of steps
Initialization time:	50 ms 1)
footnote	1) Valid positional data can be read once this time has elapsed

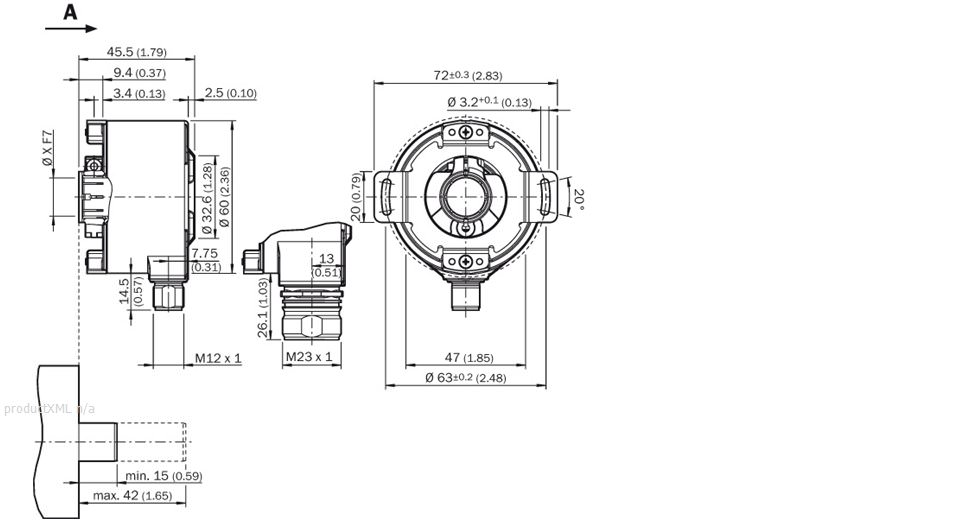

Механические параметры

Mechanical interface:	Blind hollow shaft
Shaft diameter:	10 mm
Mass:	0.2 kg
Start up torque:	0.8 Ncm (20 °C)
Operating torque:	0.6 Ncm (20 °C)
Maximum operating speed:	6,000 /min 1)
Moment of inertia of the rotor:	40 gcm?
Bearing lifetime:	3.0 x 10^9 revolutions
Max. angular acceleration:	500,000 rad/s?
Permissible movement axial static/dynamic:	± 0.5 mm, ± 0.01 mm
Permissible movement radial static/dynamic:	± 0.3 mm, ± 0.05 mm
Type of mounting shaft:	Blind hollow shaft
footnote	1) Self warming of 3.3 K per 1000 revolutions/min when applying note working temperature range

Электрические параметры

Power consumption:	0.5 W (without load)
Operating voltage range:	4.5 V DC ... 32 V DC
MTTFd: mean time to dangerous failure:	250 a (EN ISO 13849-1) 1)
Connection type:	Connector M23, 12-pin, radial
Code type:	Gray
Code sequence:	CW/CCW, parameter adjustable
Reverse polarity protection:	1
footnote	1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

Interfaces

Electrical interface:	SSI/Gray
Interface signals:	Clock +, Clock -, Data +, Data-
Clock frequency:	2 MHz 1)
SET (electronic adjustment):	H-active (L ? 0 - 1,5 V, H ? 2,0 - Us V)
CW/CCW (counting sequence when turning):	L-active (L ? 0 - 1,5 V, H ? 2,0 - Us V)
footnote	1)

Ambient data

EMC:	(according to EN 61000-6-2 and EN 61000-6-3) 1)
Enclosure rating:	IP 65 (according to IEC 60529), shaft side, IP 67 (according to IEC 60529), housing side 2)
Permissible relative humidity:	90 % (condensation of the optical scanning not permitted)
Working temperature range:	-30 °C ... 100 °C
Storage temperature range:	-40 °C ... 100 °C, without package
Resistance to shocks:	60 g, 6 ms (according to EN 60068-2-27)
Resistance to vibration:	20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
footnote	1) 2) With mating connector fitted
