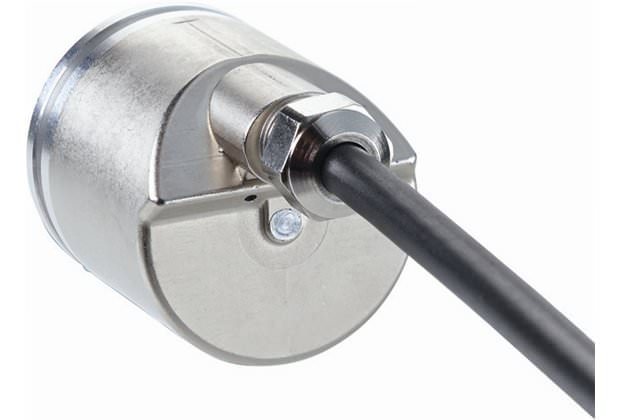

Абсолютный энкодер AHS/AHM36 AHS/AHM36 CANopen, Rotary - AHS36A-S1CK016384 - 1066001 (sick151770)

Поставляем Абсолютный энкодер AHS/AHM36 AHS/AHM36 CANopen, Rotary - AHS36A-S1CK016384 - 1066001 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick151770

Производитель

Sick

Категория

Абсолютные энкодеры AHS/AHM36

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание AHS/AHM36 CANopen, Rotary - AHS36A-S1CK016384 - 1066001

Performance

Max. number of steps per revolution:	16,384
Max. number of revolutions:	1
Resolution power:	16,384 x 1
Error limits:	± 0.35 ° (at 20°C)
Repeatability (Ta not constant):	± 0.2 ° (at 20°C)
Measuring step:	± 0.022 ° (360 ° / number of steps)
Initialization time:	2 s 1)
footnote	1) Valid positional data can be read once this time has elapsed

Механические параметры

Mechanical interface:	Solid shaft, Servo flange
Shaft diameter:	6 mm
Start up torque:	1 Ncm (+20 °C) 1)
Operating torque:	< 1 Ncm (+20 °C) 2)
Permissible Load capacity of shaft:	20 N (axial), 40 N (radial)
Maximum operating speed:	6,000 /min 3) 4)
Moment of inertia of the rotor:	2.5 gcm?
Bearing lifetime:	3.6 x 10^8 revolutions
Max. angular acceleration:	500,000 rad/s?
Shaft material:	Stainless steel
Flange material:	Aluminum
Housing material:	Zinc
Shaft length:	12 mm
Material, cable:	PUR
footnote	1) 2) 4) 3) Self warming of 5,5 K per 1000 revolutions/min when applying note working temperature range

Электрические параметры

Power consumption:	Without load
Operating voltage range:	10 V ... 30 V
MTTFd: mean time to dangerous failure:	270 a (EN ISO 13849-1) 1)
Connection type:	Cable, 5-wire, universal, 1.5 m
Reverse polarity protection:	1
Power consumption max. without load:	1.5 W
footnote	1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

Interfaces

Electrical interface:	CANopen
Bus:	CANopen
Address setting:	0 ... 127
Data transmission rate (baud rate):	20 kbit/s ... 1,000 kbit/s, default: 125 kbit/s
Status information:	CANopen Status uber Status-LED
Bus termination:	Via external termination resistance 1)
Encoder profile:	CANopen CiA DS-301 V4.02, CiA DSP-305 LSS, Encoder Profile: - CIA DS-406, V3.2. - Class C2
Parameterising data:	Abtastrate fur Geschwindigkeitsberechnung, Number of revolutions, Einheit fur Ausgabe des Geschwindigkeitswerts, Elektronische Nocken (2 Kanale x 8 Nocken), PRESET, Endless operating functionality (only Multiturn version), Number of steps per revolution, Counting direction
PDO data:	Speed, Position, Temperature
Available diagnostics data:	Betriebsstundenzahler Power-On / Motion, Maximale Geschwindigkeit, Minimale und maximale Betriebsspannung, Minimale und maximale Temperatur, Power-On Zahler, Zahler fur Richtungsanderungen / Anzahl Bewegung cw / Anzahl Bewegungen ccw
footnote	1) See accessories

Ambient data

EMC:	(according to EN 61000-6-2 and EN 61000-6-3)
Enclosure rating:	IP 66 / IP 67 (according to IEC 60529), housing side, IP 66 / IP 67 (according to IEC 60529), shaft side 1) 2)
Permissible relative humidity:	90 % (Condensation not permitted)
Working temperature range:	-40 °C ... +85 °C
Storage temperature range:	-40 °C ... +100 °C, without package
Resistance to shocks:	100 g, 6 ms (according to EN 60068-2-27)
Resistance to vibration:	20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
footnote	1) With mating connector fitted 2)
