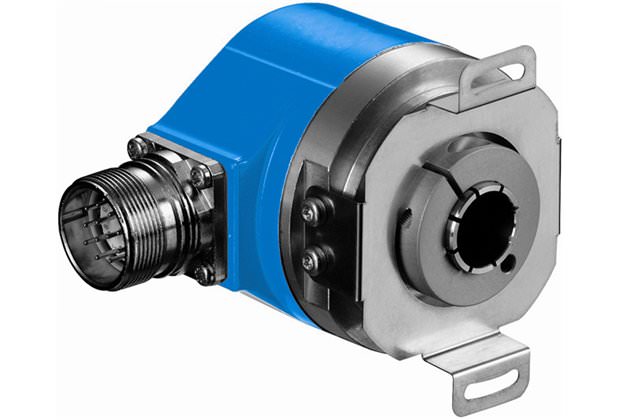

Абсолютный энкодер ARS60 ARS60 SSI/Parallel - ARS60-FAM16384 - 1035360 (sick144549)

Поставляем Абсолютный энкодер ARS60 ARS60 SSI/Parallel - ARS60-FAM16384 - 1035360 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick144549

Производитель

Sick

Категория

Абсолютные энкодеры ARS60

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Пускатель магнитный 9А катушка управления 230В АС 1НО+1НЗ LC1D LC1D09M7 Schneider Electric

Смотреть ещё

Описание

Описание ARS60 SSI/Parallel - ARS60-FAM16384 - 1035360

Performance

Max. number of steps per revolution:	16,384
Max. number of revolutions:	1
Resolution power:	16,384 x 1
Error limits:	0.035 ° (binary number of steps) 0.046 ° (non-binary number of steps)
Repeatability (Ta not constant):	0.005 °
Measuring step deviation:	0.005 °, 0.016 °
Measuring step:	360 ° /number of lines
Initialization time:	80 ms 1)
footnote	1) Valid positional data can be read once this time has elapsed

Механические параметры

Mechanical interface:	Blind hollow shaft

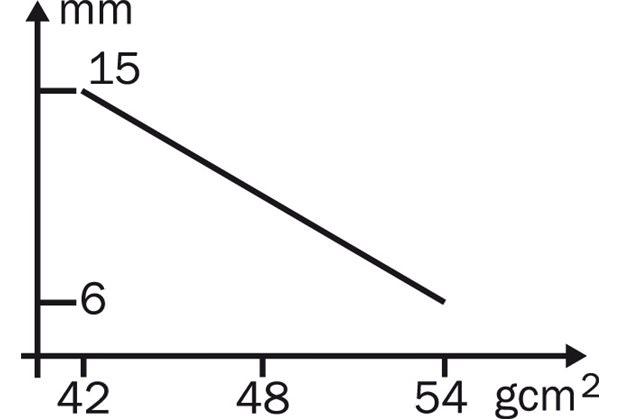

Shaft diameter:	6 mm 8 mm 10 mm 12 mm 14 mm 15 mm 1/4 ' 3/8 ' 1/2 ' 1)
Start up torque:	0.6 Ncm
Operating torque:	0.4 Ncm
Maximum operating speed:	3,000 /min
Bearing lifetime:	3.6 x 10^9 revolutions
Max. angular acceleration:	500,000 rad/s?
Permissible movement axial static/dynamic:	± 0.5 mm, ± 0.2 mm
Permissible movement radial static/dynamic:	± 0.3 mm, ± 0.1 mm
Operation of zero-set:	? 100 ms 2)
footnote	1) Collets for 6, 8, 10, 12, 14 mm and 1/4 ', 3/8 ' and 1/2 ' as accessories, separate order item. For 15 mm shaft diameter collet is not needed. 2) Only with shaft stationary (note initialisation time)

Электрические параметры

Operating voltage range:	10 V DC ... 32 V DC
Operating power consumption (no load):	90 mA
MTTFd: mean time to dangerous failure:	300 a (EN ISO 13849-1) 1)
footnote	1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

Interfaces

Electrical interface:	Cable, 22-pin, radial, 5 m

Ambient data

EMC:	(according to EN 61000-6-2 and EN 61000-6-3) 1)
Enclosure rating:	IP 66 (according to IEC 60529)
Permissible relative humidity:	90 % (condensation of the optical scanning not permitted)
Working temperature range:	-20 °C ... 85 °C
Storage temperature range:	-40 °C ... 100 °C
Resistance to shocks:	50 g (according to EN 60068-2-27)
Resistance to vibration:	20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
footnote	1)
