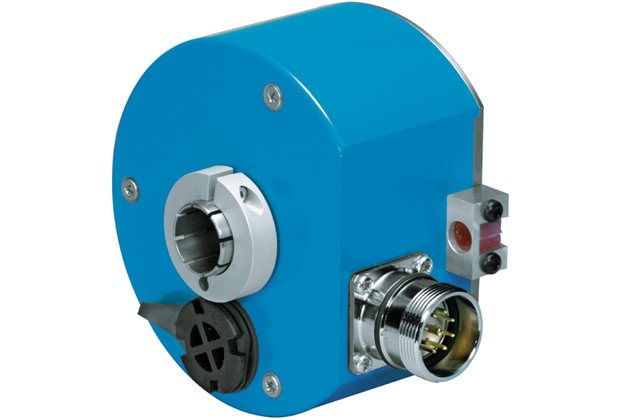

Абсолютный энкодер ATM90 ATM90 SSI - ATM90-ATL12X12 - 1030032 (sick143693)

Поставляем Абсолютный энкодер ATM90 ATM90 SSI - ATM90-ATL12X12 - 1030032 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick143693

Производитель

Sick

Категория

Абсолютные энкодеры ATM90

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание ATM90 SSI - ATM90-ATL12X12 - 1030032

Performance

Max. number of steps per revolution:	4,096
Max. number of revolutions:	4,096
Resolution power:	4,096 x 4,096
Resolution:	12 bit x 12 bit
Error limits:	± 0.25 °
Repeatability (Ta not constant):	0.1 °
Measuring step:	0.043 °
Initialization time:	1,050 ms 1)
footnote	1) Valid positional data can be read once this time has elapsed

Механические параметры

Mechanical interface:	Through hollow shaft
Shaft diameter:	12 mm
Start up torque:	0.5 Ncm
Operating torque:	0.4 Ncm
Moment of inertia of the rotor:	153.77 gcm?
Bearing lifetime:	3.6 x 10^9 revolutions
Max. angular acceleration:	600,000 rad/s?
Shaft material:	Stainless steel
Flange material:	Aluminum
Housing material:	Die-cast aluminum

Электрические параметры

Operating voltage range:	10 V ... 32 V
MTTFd: mean time to dangerous failure:	150 a (EN ISO 13849-1) 1)
Connection type:	Cable, 12-pin, radial, 3 m
Code type:	Binary, Gray
Code sequence:	CW/CCW
Power consumption max. without load:	0.8 W
footnote	1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

Interfaces

Electrical interface:	SSI
Interface signals:	Clock +, Clock -, Data +, Data-, Programming interface: RS-422 1)
Clock frequency:	1 MHz 2)
SET (electronic adjustment):	H-active (L ? 0 - 4,7 V, H ? 10 - Us V)
CW/CCW (counting sequence when turning):	L-active (L ? 0 - 1,5 V, H ? 2,0 - Us V)
Parameterising data:	Number of revolutions, Code type, Electronic adjustment, Number of steps per revolution
footnote	1) For higher clock frequencies, choose synchronous SSI 2)

Ambient data

EMC:	(according to EN 61000-6-2 and EN 61000-6-3)
Enclosure rating:	IP 65 (according to IEC 60529), with shaft seal 1)
Permissible relative humidity:	98 %
Working temperature range:	-20 °C ... +70 °C
Storage temperature range:	-40 °C ... +100 °C, without package
Resistance to shocks:	100 g, 6 ms (according to EN 60068-2-27)
Resistance to vibration:	20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
footnote	1) With mating connector fitted
