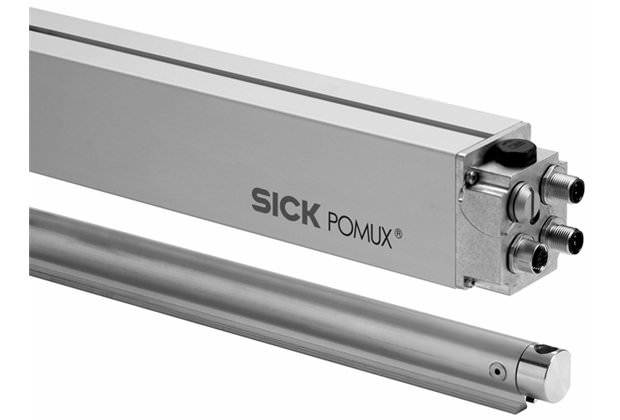

Линейный энкодер KH53 KH53 - KHK53-PXF00054 - 1036167 (sick144730)

Поставляем Линейный энкодер KH53 KH53 - KHK53-PXF00054 - 1036167 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick144730

Производитель

Sick

Категория

Линейные энкодеры KH53

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание KH53 - KHK53-PXF00054 - 1036167

Performance

Measuring length:	0 m ... 54 m
Measurement range:	54 m
Resolution:	0.1 mm
Piston speed:	6.6 m/s 1)
Measurement accuracy:	± 2000 + ME (Tu-25° C) Tk µm 2)
Repeatability (Ta not constant):	1 mm
footnote	1) If the max. movement speed is exceeded or the read head cannot detect a measuring element an error message is produced. 2) If the read head and measuring element are mounted within ± 1 mm of the nominal mounting distance in the N and Y directions. The figures quoted related to the accuracy within a measuring element with reference to the start of that measuring element. ME = length measuring element Tu = Ambient temperature °C

Механические параметры

Connection type:	3 x connector M12
Mass:	4.4 kg

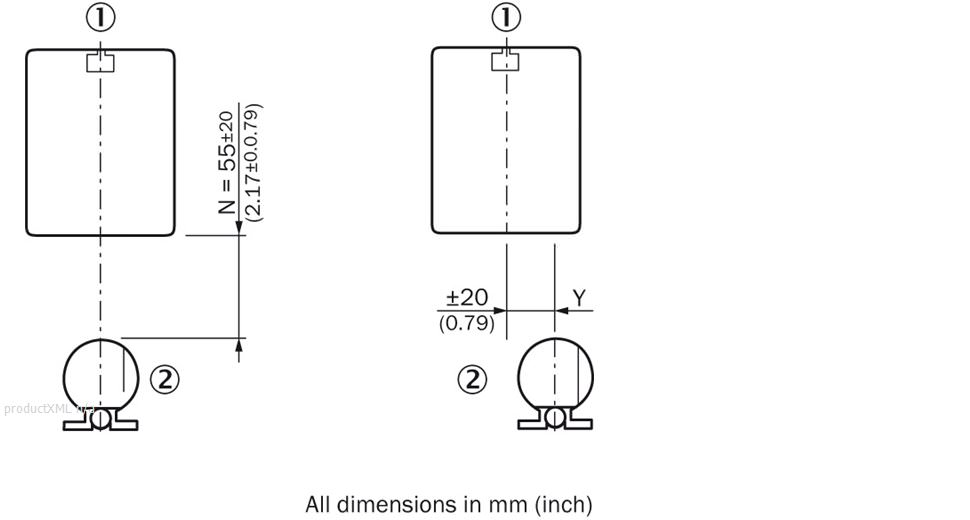

Position tolerance:	± 20 mm
Material:	AlMgSiPbF28

Электрические параметры

Initialization time:	2 s
Position forming time:	1.1 ms
Supply voltage:	10 V ... 32 V
Power consumption:	2.5 W
MTTFd: mean time to dangerous failure:	30 a (EN ISO 13849) 1)
footnote	1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

Interfaces

Electrical interface:	PROFIBUS DP
Bus interface:	RS-485 1) 2) 3)
SET (electronic adjustment):	Via protocol
Address setting:	0 ... 127, Hex switches or Protocol
Data protocol:	Profibus DP basic functions, Profile for encoders (07hex) - Class 2
Status information:	Operation (LED green), Bus aktivity (LED red)
Bus termination:	Via external switches
footnote	1) EN 50 170-2 2) DIN 19245 part 1-3 3) DC isolated via opto-couplers

Ambient data

EMC:	(according to EN 61000-6-2 and EN 61000-6-4) 1)
Enclosure rating:	IP 67 (IEC 60529), with mating connector inserted
Working temperature range:	-30 °C ... +70 °C
Storage temperature range:	-40 °C ... +85 °C
Resistance to shocks:	30 g, 10 ms (DIN EN 60 068-2-27)
Resistance to vibration:	10 g, 20 Hz ... 250 Hz (EN 60068-2-6)
footnote	1)
