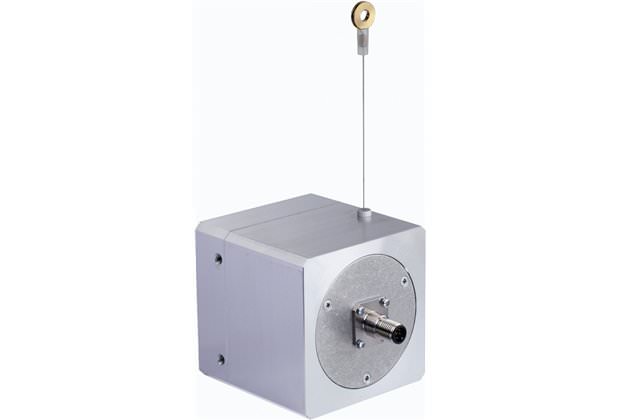

Тросиковый датчик расстояния Compact Compact - XKS09-HTBM0527 - 1035437 (sick144565)

Поставляем Тросиковый датчик расстояния Compact Compact - XKS09-HTBM0527 - 1035437 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick144565

Производитель

Sick

Категория

Тросиковые датчики расстояния Compact

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание Compact - XKS09-HTBM0527 - 1035437

Performance

Measurement range:	0 m ... 5 m
Length of period:	1.195 mm
Linearity:	? ± 0.7 mm
Non-linearity:	± 0.1 mm
Piston speed:	3.5 m/s
Repeat accuracy typ:	? 0.15 °

Механические параметры

Mass:	1.5 kg
Measuring wire diameter:	0.6 mm
Measuring wire material:	Highly flexible stranded steel (PA 12 sheathed)
Housing material:	Aluminum
Spring return force:	4 N ... 6 N 1)
Life of wire draw mechanism:	800,000 cycles 2) 3)
Wire acceleration:	? 20 m/s?
footnote	1) These values were measred at an ambient temperature of 25 °C. There may be variations at other temperatures. 2) 3) At high operating speeds over great lengths, this figure can decrease; at slow oerating speends over short lengths, it can increase.

Электрические параметры

Operating current:	60 mA (without load)
Output frequency for sine/cosine signals:	0 kHz ... 65 kHz
Available memory area:	1,792 Byte
Supply voltage:	7 V ... 12 V
Code type:	Binary
Code sequence:	Rising at wire pull-out
MTTFd: mean time to dangerous failure:	250 a (EN ISO 13849) 1)
EEprom:	2048 Eeprom
footnote	1) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

Interfaces

Electrical interface:	7 V ... 12 V, HIPERFACE®
Connection type:	Male connector M12, 8-pin, radial
Interface signals:	Parameter channel RS-485: digital, Process data channel SIN, REFSIN, COS, REFCOS: analog, differential
Number of sine/cosine periods per revolution:	128
Encoder:	Absolute encoders

Ambient data

EMC:	(according to EN 61000-6-2 and EN 61000-6-3)
Enclosure rating encoder:	IP 52 (according to IEC 60529), Note required mounting position
Resistance to shocks:	20 g, 6 ms (according to EN 60068-2-27)
Resistance to vibration:	10 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Storage temperature range:	-20 °C ... +80 °C
Relative humidity / Condensation:	90 % (Condensation not permitted)
Working temperature range (encoder):	-10 °C ... +70 °C
