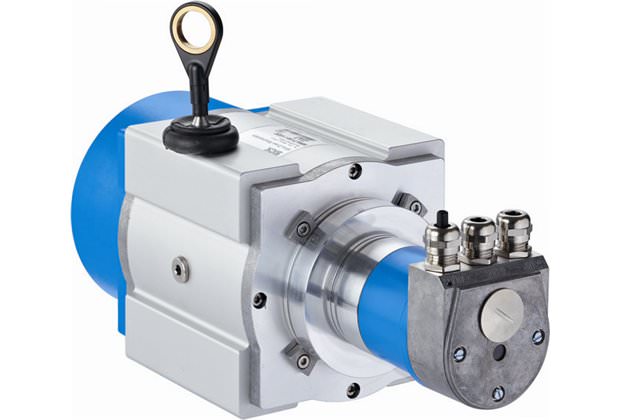

Тросиковый датчик расстояния HighLine HighLine - BTF13-C1HM1025 - 1034319 (sick144313)
Поставляем Тросиковый датчик расстояния HighLine HighLine - BTF13-C1HM1025 - 1034319 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.
есть на складе
наши менеджеры Online
Внимание!
Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.
Наши отгрузки
- Описание
Описание HighLine - BTF13-C1HM1025 - 1034319
Performance
| Measurement range: | 0 m ... 10 m |
|---|---|
| Repeatability: | ? 1.5 mm 1) |
| Linearity: | ? ± 2 mm 2) |
| Hysteresis: | ? 3 mm 3) |
| Resolution (wire draw + encoder): | 0.04 mm 4) 5) |
| footnote | 1) 3) Value refers to wire draw mechanism 2) 4) 5) |

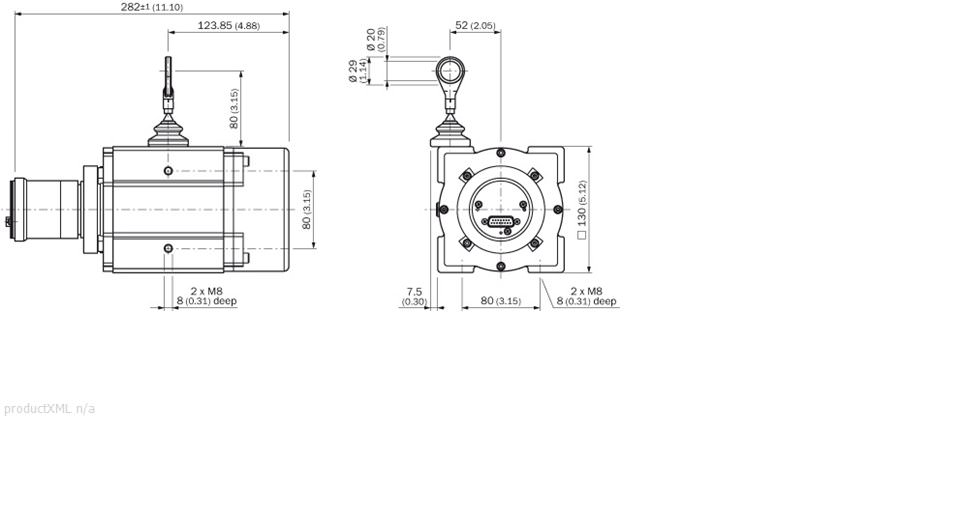

Механические параметры
| Mass (including encoder): | 4.09 kg |
|---|---|
| Mass (mechanics): | 3.5 kg |
| Measuring wire diameter: | 1.35 mm |
| Measuring wire material: | Highly flexible stranded steel 1.4401 stainless steel V4A |
| Housing material, wire draw mechanism: | Aluminum (anodised), plastic |
| Spring return force: | 10 N ... 20 N 1) |
| Life of wire draw mechanism: | 1 million cycles 2) |
| Actual length of cable extension: | 10.2 m |
| Wire acceleration: | 40 m/s? |
| Operating speed: | 4 m/s |
| Mounted encoder: | ATM60 CANopen |
| Mounted mechanic: | MRA-F130-110D2 |
| Part number mechanic: | 6028627 |
| Part number encoder: | 1030025 |
| Mass (measuring wire): | 7.1 g/m |
| Length of wire pulled out per revolution: | 334.1 mm 3) |
| Number of steps per revolution: | 8,192 |
| footnote | 1) These values were measred at an ambient temperature of 25 °C. There may be variations at other temperatures. 2) 3) |
Электрические параметры
| Initialization time: | Ca. 12 s 1) |
|---|---|
| Supply voltage: | 10 V ... 32 V |
| Power consumption: | 2 W |
| MTTFd: mean time to dangerous failure: | 150 a 2) 3) |
| footnote | 1) Valid positional data can be read once this time has elapsed. 2) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532. 3) The value applies to the mounted encoder |
Interfaces
| Electrical interface: | CANopen |
|---|---|
| Connection type: | Bus adaptor with cable screw fixings or connector, radial 1) |
| Address setting: | 0 ... 63 |
| Protocol: | Communication Profile DS 301 V4.0 |
| Bus termination: | Via DIP switches |
| SET (electronic adjustment): | Via PRESET push button or protocol |
| Encoder profile: | Device Profile DSP 406 V 2.0 |
| Encoder: | Absolute encoders |
| footnote | 1) Please order the bus adaptor seperately |
Ambient data
| EMC: | (according to EN 61000-6-2 and EN 61000-6-3) |
|---|---|
| Enclosure rating encoder: | IP 67 |
| Enclosure rating mechanic: | IP 64 |
| Resistance to shocks: | 100 g, 6 ms (according to EN 60068-2-27) |
| Resistance to vibration: | 20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6) |
| Relative humidity / Condensation: | 98 % (condensation of the optical scanning not permitted) |
| Working temperature range (encoder): | -20 °C ... +70 °C |
| Working temperature range (mechanics): | -30 °C ... +70 °C |
| Working temperature range (combination): | Wird definiert durch den hoheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik |
