Тросиковый датчик расстояния HighLine HighLine - BTF13-C1QM0549 - 1068889 (sick152285)

Поставляем Тросиковый датчик расстояния HighLine HighLine - BTF13-C1QM0549 - 1068889 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick152285

Производитель

Sick

Категория

Тросиковые датчики расстояния HighLine

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Endress+Hauser DELTABAR-S PMD75-DFMV7/115

Смотреть ещё

Описание

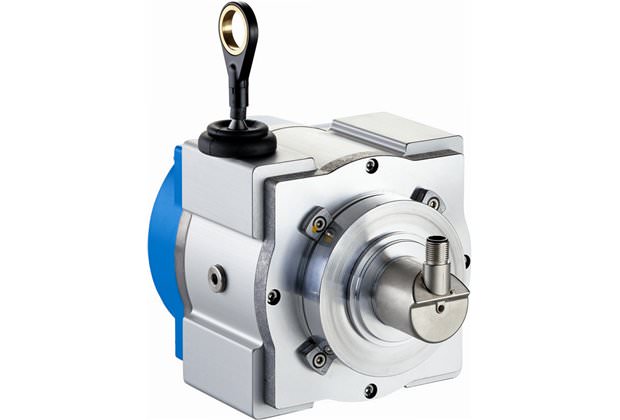

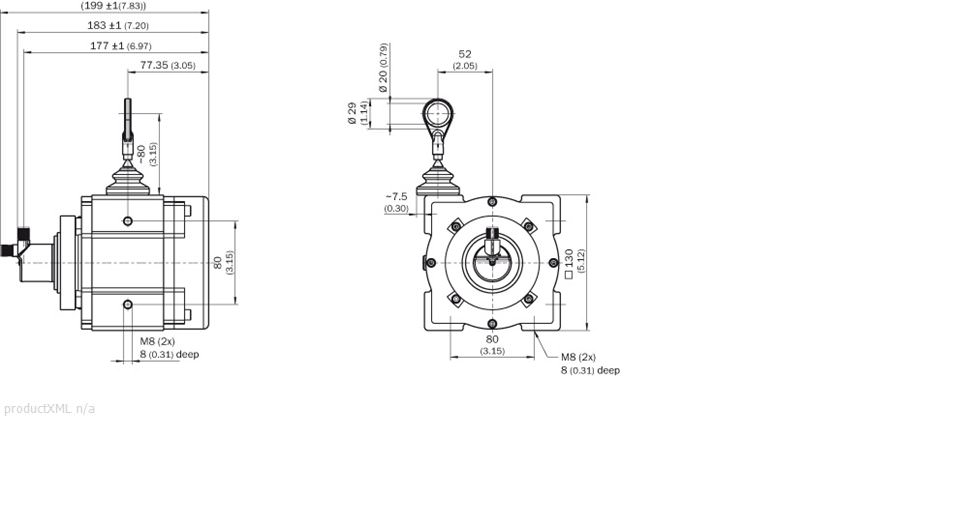

Описание HighLine - BTF13-C1QM0549 - 1068889

Performance

Measuring range:	0 m ... 5 m
Repeatability:	? 1 mm 1)
Linearity:	? ± 2 mm 2)
Hysteresis:	? 2 mm 3)
Resolution (wire draw + encoder):	0.02 mm 4) 5)
footnote	1) 3) Value refers to wire draw mechanism 2) 4) 5)

Механические параметры

Mass (including encoder):	2.92 kg
Mass (mechanics):	2.8 kg
Measuring wire diameter:	1.35 mm
Measuring wire material:	Highly flexible stranded steel 1.4401 stainless steel V4A
Housing material, wire draw mechanism:	Aluminum (anodised), plastic
Spring return force:	15 N ... 20 N 1)
Life of wire draw mechanism:	1 million cycles 2)
Actual length of cable extension:	5.2 m
Wire acceleration:	70 m/s?
Operating speed:	4 m/s
Mounted encoder:	AHM36 CANopen
Mounted mechanic:	MRA-F130-105D2
Part number mechanic:	6028626
Part number encoder:	1065999
Mass (measuring wire):	7.1 g/m
Length of wire pulled out per revolution:	334.1 mm 3)
Number of steps per revolution:	16,384
footnote	1) These values were measred at an ambient temperature of 25 °C. There may be variations at other temperatures. 2) 3)

Электрические параметры

Initialization time:	2 s 1)
Supply voltage:	10 V ... 30 V
Power consumption:	1.5 W
MTTFd: mean time to dangerous failure:	270 a 2) 3)
footnote	1) Valid positional data can be read once this time has elapsed. 2) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532. 3) The value applies to the mounted encoder

Interfaces

Electrical interface:	CANopen
Electrical connection:	Universal 1)
Address setting:	0 ... 127
Protocol:	Communication Profile DS 301 V4.02
Bus termination:	Via external termination resistance
Encoder profile:	CiA DS-406, V3.2. - Class C2
Encoder:	Absolute encoders
footnote	1)

Ambient data

EMC:	(according to EN 61000-6-2 and EN 61000-6-3)
Enclosure rating encoder:	IP 66 / IP 67 (according to IEC 60529), housing side, IP 66 / IP 67 (according to IEC 60529), shaft side
Enclosure rating mechanic:	IP 64
Resistance to shocks:	100 g, 6 ms (according to EN 60068-2-27)
Resistance to vibration:	20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Relative humidity / Condensation:	90 % (condensation of the optical scanning not permitted)
Working temperature range (encoder):	-30 °C ... +70 °C
Working temperature range (mechanics):	-30 °C ... +70 °C
Working temperature range (combination):	Wird definiert durch den hoheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
