Тросиковый датчик расстояния HighLine HighLine - BTF19-P1HM5017 - 1034310 (sick144304)

Поставляем Тросиковый датчик расстояния HighLine HighLine - BTF19-P1HM5017 - 1034310 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick144304

Производитель

Sick

Категория

Тросиковые датчики расстояния HighLine

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Каталитический элемент Honeywell SPXCDXSFXSS

Смотреть ещё

Описание

Описание HighLine - BTF19-P1HM5017 - 1034310

Performance

Measurement range:	0 m ... 50 m
Repeatability:	? 5 mm 1)
Linearity:	? ± 2 mm 2)
Hysteresis:	? 10 mm 3)
Resolution (wire draw + encoder):	0.06 mm 4) 5)
footnote	1) 3) Value refers to wire draw mechanism 2) 4) 5)

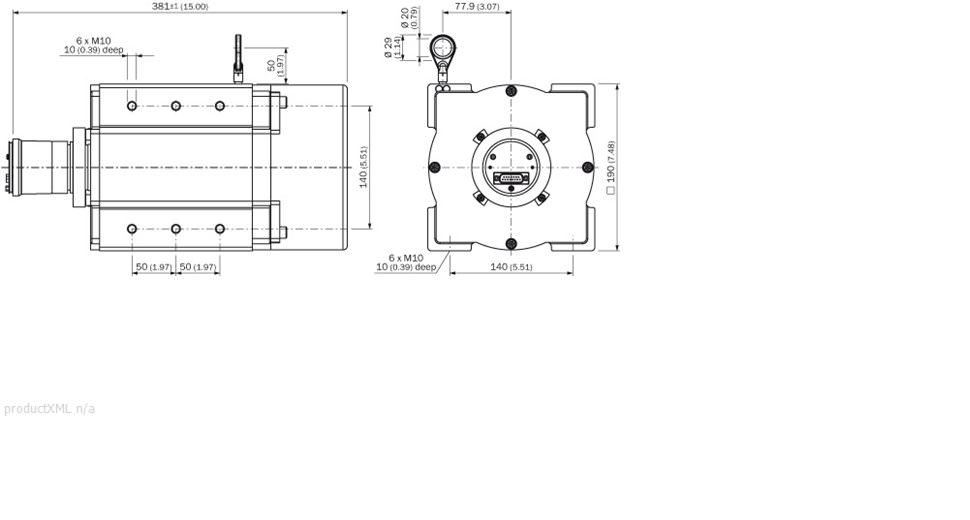

Механические параметры

Mass (including encoder):	16.78 kg (A3M60), 17.09 kg (ATM60 PROFIBUS)
Mass (mechanics):	16.5 kg
Measuring wire diameter:	1.35 mm
Measuring wire material:	Highly flexible stranded steel 1.4401 stainless steel V4A
Housing material, wire draw mechanism:	Aluminum (anodised), die-cast zinc
Spring return force:	18 N ... 37 N 1)
Life of wire draw mechanism:	1 million cycles 2)
Actual length of cable extension:	50.2 m
Wire acceleration:	18 m/s?
Operating speed:	4 m/s
Mounted encoder:	A3M60, ATM60 PROFIBUS
Mounted mechanic:	MRA-F190-150D2
Part number mechanic:	6028630
Part number encoder:	1030014
Mass (measuring wire):	7.1 g/m
Length of wire pulled out per revolution:	491.5 mm 3)
Number of steps per revolution:	8,192
footnote	1) These values were measred at an ambient temperature of 25 °C. There may be variations at other temperatures. 2) 3)

Электрические параметры

Initialization time:	Ca. 1 s, A3M60, Ca. 12 s, ATM60 PROFIBUS 1) 2)
Supply voltage:	10 V ... 32 V
Power consumption:	1.5 W (A3M60), 2 W (ATM60 PROFIBUS)
MTTFd: mean time to dangerous failure:	150 a (ATM60 PROFIBUS), 60 a (A3M60) 3) 4) 5) 6)
footnote	1) 2) Valid positional data can be read once this time has elapsed. 3) 5) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532. 4) 6) The value applies to the mounted encoder

Interfaces

Electrical interface:	PROFIBUS
Connection type:	Bus adaptor with cable screw fixings or connector, radial 1)
Address setting:	0 ... 127, DIP switch
Protocol:	PROFIBUS DP V0 (A3M60), Profil fur Encoder (07hex) - Class 2 (ATM60 PROFIBUS)
Bus termination:	Via DIP switches
SET (electronic adjustment):	Via PRESET push button or protocol
Encoder profile:	Encoder profile version 1.1 class 1 and class 2 (A3M60), Profil fur Encoder (07hex) - Class 2 (ATM60 PROFIBUS)
Encoder:	Absolute encoders
footnote	1) Please order the bus adaptor seperately

Ambient data

EMC:	(according to EN 61000-6-2 and EN 61000-6-3)
Enclosure rating encoder:	IP 67
Enclosure rating mechanic:	IP 31
Resistance to shocks:	100 g, 6 ms (according to EN 60068-2-27)
Resistance to vibration:	30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Relative humidity / Condensation:	95 % (A3M60, condensation of the optical scanning not permitted), 98 % (ATM60 PROFIBUS, condensation of the optical scanning not permitted)
Working temperature range (encoder):	-10 °C ... +70 °C, A3M60, -20 °C ... +70 °C, ATM60 PROFIBUS
Working temperature range (mechanics):	-30 °C ... +70 °C
Working temperature range (combination):	Wird definiert durch den hoheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
