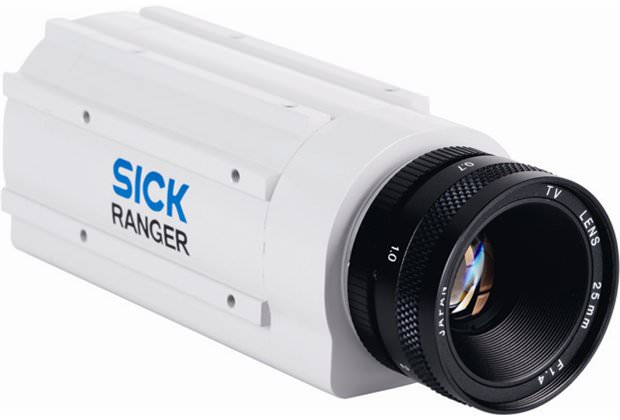

ЗD зрение CameraLink , Ranger, Ranger C, Ranger C55 IR - Ranger-C55422 - 1014224 (sick142256)

Поставляем ЗD зрение CameraLink , Ranger, Ranger C, Ranger C55 IR - Ranger-C55422 - 1014224 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick142256

Производитель

Sick

Категория

ЗD зрение

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание CameraLink , Ranger, Ranger C, Ranger C55 IR - Ranger-C55422 - 1014224

Features

Task:	Inspection, Measuring, Positioning
Description:	Ranger C55 IR - 3D and MultiScan, up to 30 k profiles / second. CameraLink interface, 512 x 512 pixels with IR high pass filter, high resolution line of 3,072 pixels.
Technology:	3D LineScan MultiScan
Example field of view (H x W):	Free of choice by lens selection
Data synchronization:	Encoder triggered External trigger Free running
Spectral range:	400 nm ... 950 nm
Factory calibrated:	-

Performance

Image sensor:	CMOS
Maximum performance:	30,000 3D profiles/s
Sensor resolution:	1,536 px x 512 px
3D profile resolution:	1,536 px
Gray line resolution:	1,536 px
Pixel size:	9.5 µm x 9.5 µm
Pixel matrix fill factor:	60 %
Maximum 3D height resolution:	13 bits 1/16 pixel
Optical center (row, column):	(227, 768)
IR filter:	IR pass filter 1)
Scatter resolution:	1,536 px
Hi-Res Gray resolution:	3,072 px
Sensor rows available for 3D:	100 ... 511
Bit depth:	8 bit
Hi-Res pixel size (H x V):	4.75 µm x 9.5 µm
Hi-Res pixel fill factor:	80 %
footnote	1) Pass filter, cutoff at 740 nm; on rows 100-511.

Interfaces

Configuration software:	Ranger Studio
Communication interfaces:	CameraLink
Operating system:	Windows XP Pro
Development environment:	C, C++ (VS 2005/2008/2010)
Programming interface:	ICon API
Digital inputs:	5 x TTL
Digital outputs:	1 x TTL
Maximum encoder frequency:	2 MHz
Control of external illumination:	5 V TTL
Encoder interface:	5 V TTL

Mechanics/electronics

Connectors:	Lemo 14-pin female connector (power, I/O) Mini D Ribbon, MDR, 26 pin female connector (CameraLink)
Supply voltage:	12 V DC ... 24 V DC
Power consumption:	8 W
Current consumption:	1.25 A
Ripple:	< 5 Vpp
Enclosure rating:	IP 20
Housing material:	Aluminum
Housing color:	Gray, varnished
Weight:	390 g

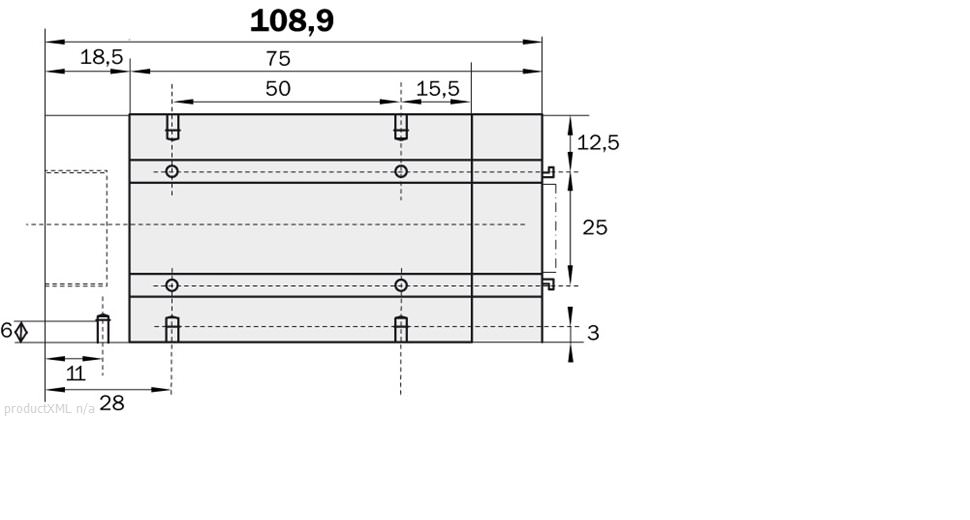

Dimensions (L x W x H):	109 mm x 50 mm x 50 mm
Optics:	C-Mount, 1'

Ambient data

Shock load:	15 g, 3 x 6 directions
Vibration load:	5 g, 58 Hz ... 150 Hz
Ambient operating temperature:	+5 °C ... +50 °C 1) 2)
Ambient storage temperature:	-20 °C ... +70 °C 3)
footnote	1) 3) Non-condensing 2) Camera housing temperature
