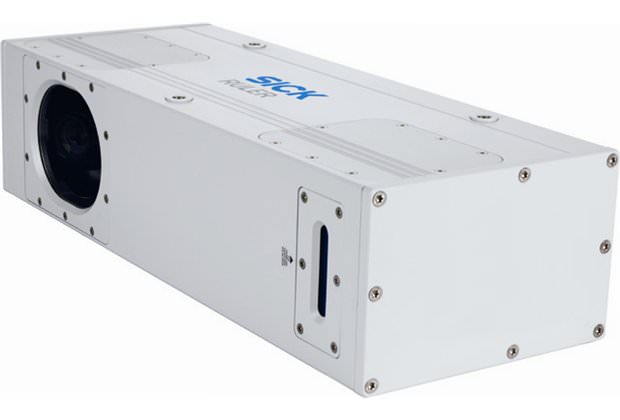

ЗD зрение Gigabit Ethernet , Ruler, Ruler E1200, Ruler E1200 SH - Ruler-E1212 - 1029232 (sick143559)

Поставляем ЗD зрение Gigabit Ethernet , Ruler, Ruler E1200, Ruler E1200 SH - Ruler-E1212 - 1029232 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick143559

Производитель

Sick

Категория

ЗD зрение

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание Gigabit Ethernet , Ruler, Ruler E1200, Ruler E1200 SH - Ruler-E1212 - 1029232

Features

Task:	Inspection, Measuring, Positioning
Description:	Ruler E1200 SH - 2M Laser, Scatter measurements, Heating elements, up to 10 k profiles / second. Gigabit Ethernet interface, 1,024 px x 512 px.
Technology:	3D LineScan
Example field of view (H x W):	250 mm x 1,200 mm
Field of view width:	500 mm ... 1,550 mm
Sensing distance:	280 mm ... 1,280 mm
Maximum height range:	1,000 mm
Data synchronization:	Encoder triggered External trigger Free running
Spectral range:	Ca. 630 nm ... 690 nm
Heating element:	With heating
Light source:	Visible red light (laser, 660 nm, ± 15 nm)
Laser class:	2M (IEC 60825-1 : 2008-01)

Performance

Image sensor:	CMOS
Maximum performance:	10,000 3D profiles/s
Sensor resolution:	1,024 px x 512 px
3D profile resolution:	1,024 px
Typical height resolution:	0.4 mm
Gray line resolution:	1,024 px
Scatter resolution:	1,024 px

Interfaces

Configuration software:	Ranger Studio
Communication interfaces:	Gigabit Ethernet
Operating system:	Windows 7, Windows XP Pro
Development environment:	C, C++ (VS 2005/2008/2010)
Programming interface:	ICon API
Digital inputs:	3 x HIGH = 10 V ... 28.8 V
Digital outputs:	2 x B-type, < 100 mA in total
Maximum encoder frequency:	2 MHz
Encoder interface:	RS-422

Mechanics/electronics

Connectors:	Harting Push Pull (Ethernet) M12, 4-pin male connector (heating) M12, 8-pin socket (encoder) M12, 8-pin male connector (power I/O)
Connector material:	Ethernet: thermoplast/anodized aluminum, M12: nickel-plated brass
Power consumption:	7 W
Power consumption:	< 1 A
Ripple:	< 5 Vpp
Enclosure rating:	IP 65
Housing material:	Aluminum
Housing color:	Gray, varnished
Window material:	Float glass, AR-coated
Weight:	7 kg
Dimensions (L x W x H):	420 mm x 107 mm x 163 mm

Ambient data

Shock load:	15 g, 3 x 6 directions
Vibration load:	5 g, 58 Hz ... 150 Hz
Ambient operating temperature:	-30 °C ... +40 °C 1)
Ambient storage temperature:	-30 °C ... +70 °C 2)
footnote	1) 2) Non-condensing
