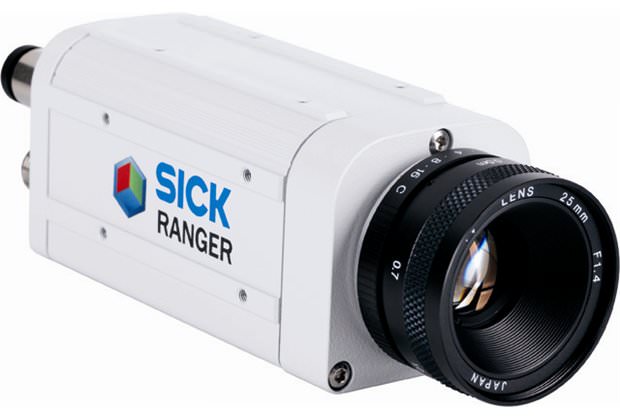

ЗD зрение RS-422 , Ranger, ColorRanger E, ColorRanger E50 - Ranger-E50434 - 1050267 (sick147630)

Поставляем ЗD зрение RS-422 , Ranger, ColorRanger E, ColorRanger E50 - Ranger-E50434 - 1050267 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick147630

Производитель

Sick

Категория

ЗD зрение

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Endress+Hauser 5P3B1F-AAIBAAAFAAAD3K2BA2

Смотреть ещё

Описание

Описание RS-422 , Ranger, ColorRanger E, ColorRanger E50 - Ranger-E50434 - 1050267

Features

Task:	Inspection, Measuring, Positioning
Description:	ColorRanger E50 - 3D- and RGB-color with MultiScan at up to 11 kHz (3D and color data). Gigabit Ethernet interface, 1,536 px 3D resolution, 3 px x 1,536 px RGB-color resolution.
Technology:	3D Color LineScan MultiScan
Example field of view (H x W):	Free of choice by lens selection
Data synchronization:	Encoder triggered External trigger Free running
Spectral range:	400 nm ... 950 nm
Factory calibrated:	-
Color measurements:	Red Green Blue Monochrome (without IR content)

Performance

Image sensor:	CMOS
Maximum performance:	35,000 3D profiles/s
Sensor resolution:	1,536 px x 512 px
3D profile resolution:	1,536 px
Gray line resolution:	1,536 px
Standard color resolution:	3 x 1.536 px
Pixel size:	9.5 µm x 9.5 µm
Pixel matrix fill factor:	60 %
Maximum 3D height resolution:	13 bits 1/16 pixel
Optical center (row, column):	(227, 768)
IR filter:	No IR pass filter
Scatter resolution:	1,536 px
Maximum color performance:	13,000 RGB lines/s
Maximum 3D and color rate:	11,000 Scans/s
Sensor rows available for 3D:	35 ... 511
Standard color row pitch:	38 µm
Bit depth:	8 bit

Interfaces

Configuration software:	Ranger Studio
Communication interfaces:	RS-422
Operating system:	Windows 7, Windows XP Pro
Development environment:	C, C++ (VS 2005/2008/2010)
Programming interface:	ICon API
Digital inputs:	4 x HIGH = 10 V ... 28.8 V
Digital outputs:	1 x TTL level, 2 x B-type, < 100 mA in total
Maximum encoder frequency:	2 MHz
Control of external illumination:	5 V TTL
Encoder interface:	RS-422

Mechanics/electronics

Connectors:	M12, 8-pin female connector (encoder) RJ45 (Ethernet) Power I/O: M12, 8-pin male
Connector material:	M12: nickel-plated brass
Supply voltage:	12 V DC ... 24 V DC
Power consumption:	7 W
Power consumption:	0.8 A
Ripple:	< 5 Vpp
Enclosure rating:	IP 20
Housing material:	Aluminum
Housing color:	Gray, varnished
Weight:	360 g
Dimensions (L x W x H):	125 mm x 52 mm x 52 mm
Optics:	C-Mount, 1'

Ambient data

Shock load:	15 g, 3 x 6 directions
Vibration load:	5 g, 58 Hz ... 150 Hz
Ambient operating temperature:	0 °C ... +45 °C 1)
Ambient storage temperature:	-20 °C ... +70 °C 2)
footnote	1) 2) Non-condensing
