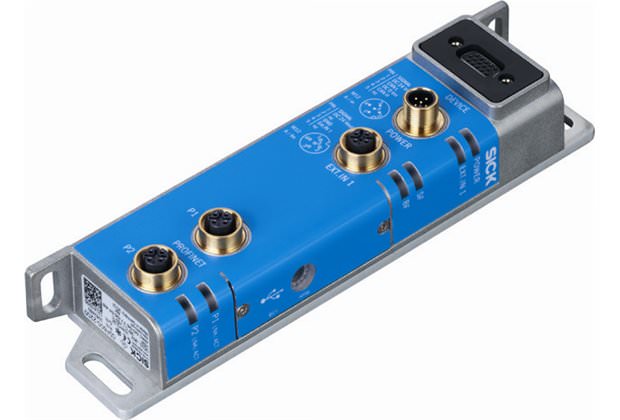

Модуль подключения CDF600-2 / CDF600-2 PROFINET IO M12 - CDF600-2200 - 1062460 (sick150947)

Поставляем Модуль подключения CDF600-2 / CDF600-2 PROFINET IO M12 - CDF600-2200 - 1062460 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick150947

Производитель

Sick

Категория

Модули подключения

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Реле промежуточное CAD 10А 230В 3НО+2НЗ CAD32M7 Schneider Electric

Смотреть ещё

Описание

Описание CDF600-2 / CDF600-2 PROFINET IO M12 - CDF600-2200 - 1062460

Features

Brief description:	Fieldbus proxy/gateway for connecting one identification sensor to PROFINET-IO networks (interface 2 x M12, female connector/female connector, 4-pin)
Supported products:	CLV61x, CLV62x, CLV63x, CLV64x, CLV65x, CLV69x, IDM12x, IDM14x, IDM16x, IDM24x, IDM26x, Lector®62x, RFH6xx, RFU63x
Supports cloning module (CMC):	Integrated
Supports display module (CMD):	No
Supports power supply module (CMP):	No
Supports fieldbus gateway (CMF):	Integrated (PROFINET IO)

Interfaces

Function (Serial (RS-232)):	AUX
Data transmission rate (Serial (RS-232)):	57.6 kBaud
Function (Ethernet):	Slave
Data transmission rate (Ethernet):	2-port Ethernet in accordance with IEEE 802.3 (baud rate 100 MBit/s, full-duplex transmission, 2-port switch, auto-negotiation, auto-crossover). Maximum data length is limited by the mode of communication (fragmentation protocol) to 4,000 bytes.
Protocol (Ethernet):	PROFINET
Remark (CAN bus):	Depending on sensor connected
PROFIBUS DP:	-
DeviceNet:	-
Switching inputs:	1
Optical indicators:	6 LEDs
Configuration software:	SOPAS ET

Mechanics/electronics

Electrical connection:	1 x “DEVICE” connection, 15-pin D-sub HD female connector with seal, 1 x “EXT. IN 1” connection, 5-pin M12 female connector, A-coded, 1 x “POWER” connection, 5-pin M12 plug, A-coded, 1 x “PROFINET P1” connection, 4-pin M12 socket, D-coded, 1 x “PROFINET P2” connection, 4-pin M12 socket, D-coded, 1 x “USB” connection, 5-pin micro-B socket, for configuration/diagnostics, behind screw-mounted cover
Operating voltage:	10 V DC ... 30 V DC
Power consumption:	< 5 W, if no sensor is connected and digital switching input is not connected
Housing:	Aluminum (unpainted)
Enclosure rating:	IP 65 (EN 60068-2-17 (1995-05))
Protection class:	III (EN 60950-1 (2011-01))
Weight:	361 g

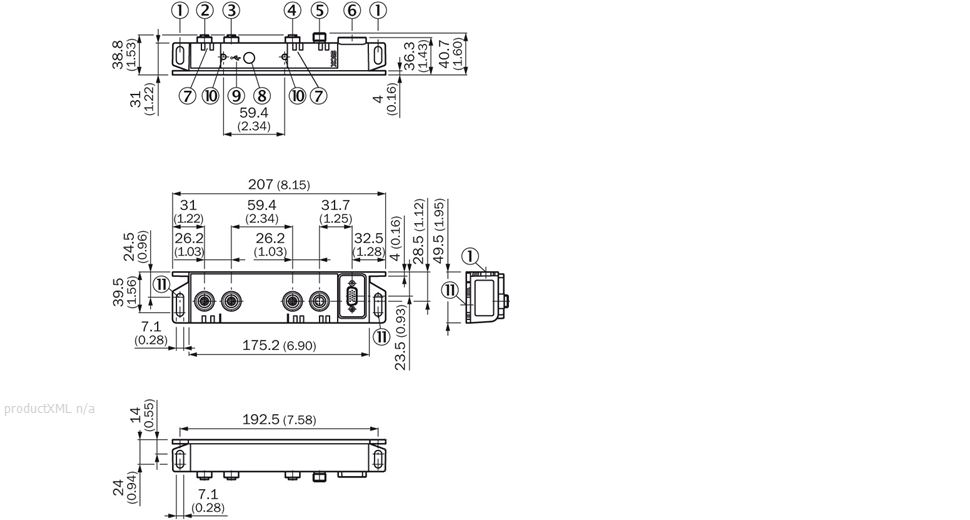

Dimensions:	207 mm x 49.5 mm x 40.7 mm
Housing color:	Aluminum (unpainted)
Scanner connection:	RS-232

Ambient data

Electromagnetic compatibility (EMC):	EN 61000-6-3 (2011-09) / EN 61000-6-2 (2006-03)
Vibration resistance:	EN 60068-2-6 (2008-10)
Shock resistance:	EN 60068-2-27 (2010-02)
Ambient operating temperature:	-35 °C ... +50 °C
Storage temperature:	-35 °C ... +70 °C
Permissible relative humidity:	90 %, non-condensing
