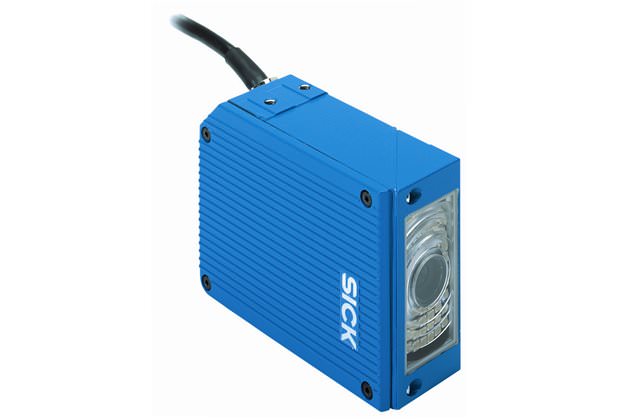

Считывание кодов по изображению ICR840-2 / ICR840-2C / Mid Range - ICR840-2C1020 - 1042885 (sick146814)

Поставляем Считывание кодов по изображению ICR840-2 / ICR840-2C / Mid Range - ICR840-2C1020 - 1042885 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick146814

Производитель

Sick

Категория

Считывание кодов по изображению

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание ICR840-2 / ICR840-2C / Mid Range - ICR840-2C1020 - 1042885

Features

Version:	Mid Range
Reading field:	Side
Focus:	Fixed focus
Focus position:	115 mm
Sensor:	CMOS matrix sensor
Sensor resolution:	1,280 px x 1,024 px (1.3 Mpixel
Code resolution:	?0.15 mm 1)
Reading distance:	70 mm ... 210 mm 2) 3)
Scanning frequency:	25 Hz, at 1.3 megapixels resolution
Light source:	Visible red light (lighting LEDs, 617 nm, ± 15 nm)
Laser class:	1 (EN 60825-1)
MTBF:	75,000 h

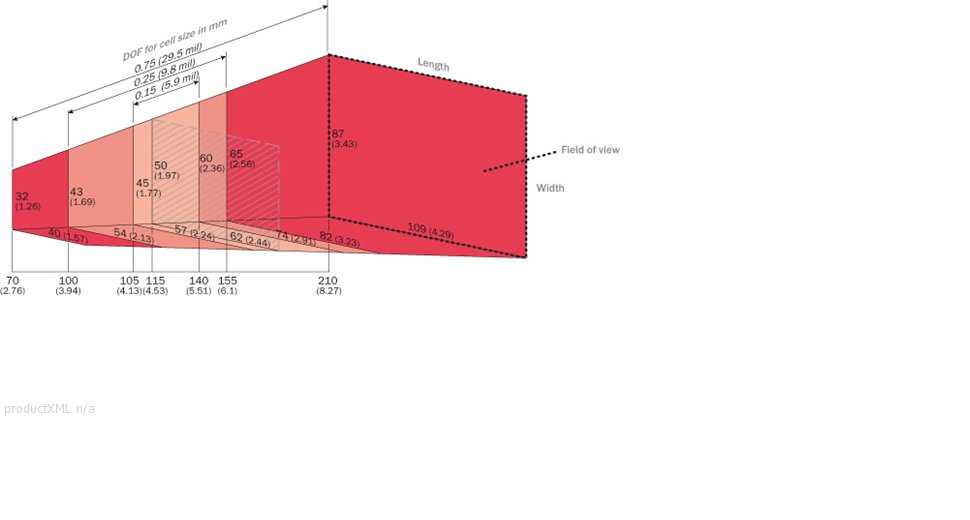

footnote	1) 2) Valid for Data Matrix, PDF417 and 1D codes with good printing quality 3) For details see reading field diagram

Performance

Bar code types:	Interleaved 2 of 5, Codabar, Code 128, Code 39, GS1-128 / EAN 128, Pharmacode, UPC / GTIN / EAN
2D code types:	Data Matrix ECC200, GS1 Data-Matrix, QR code
No. of codes per scan:	1 ... 50
No. of codes per reading interval:	1 ... 50
No. of characters per reading interval:	4,000

Interfaces

Function (Serial (RS-232)):	Host, AUX
Data transmission rate (Serial (RS-232)):	300 Baud ... 57,600 Baud, AUX: 9,600 Baud
Function (Ethernet):	Host, AUX, image transmission
Data transmission rate (Ethernet):	10/100 Mbit
Protocol (Ethernet):	TCP/IP, FTP (image transmission), PROFINET (optional via external connection module CDM)
Function (CAN bus):	SICK CAN sensor network (Master/Slave, Multiplexer)
Data transmission rate (CAN bus):	10 kbit/s ... 1 Mbit/s
Protocol (CAN bus):	CANopen, CSN (SICK CAN Sensor Network)
Remark (PROFIBUS DP):	Optional via external connection module (CDM + CMF)
Remark (DeviceNet):	Optional via external connection module (CDM + CMF)
Acoustic indicators:	Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
Optical indicators:	6 LEDs (status displays)
Switching inputs:	2
Switching outputs:	2 (Result 1 NPN, Result 2 PNP)
Reading pulse:	Non-powered, Switching inputs, Serial interface

Mechanics/electronics

Operating voltage:	15 V DC ... 30 V DC
Power consumption:	13 W
Electrical connection:	1 x RJ45 female connector on device, cables with 15-pin D-sub HD male connector (0.9 m, ± 5 %)
Housing:	Die-cast zinc
Housing color:	Light blue (RAL 5012)
Weight:	900 g, with connecting cable
Dimensions:	112 mm x 80 mm x 39 mm
Enclosure rating:	IP 30, IP 65 (EN 60529) 1) 2)
Protection class:	III (EN 61140)
footnote	1) For installed adapter frame and IP 65 Ethernet cable or for installed adapter frame and IP 65 cover 2) Without covered Ethernet connection or with standard Ethernet cable.

Ambient data

Electromagnetic compatibility (EMC):	EN 61000-6-2 / EN 61000-6-4
Vibration resistance:	EN 60068-2-6
Shock resistance:	EN 60068-2-27
Ambient operating temperature:	0 °C ... +40 °C
Storage temperature:	-20 °C ... +70 °C
Permissible relative humidity:	± 90 %, non-condensing
Ambient light immunity:	2,000 lx, on bar code
