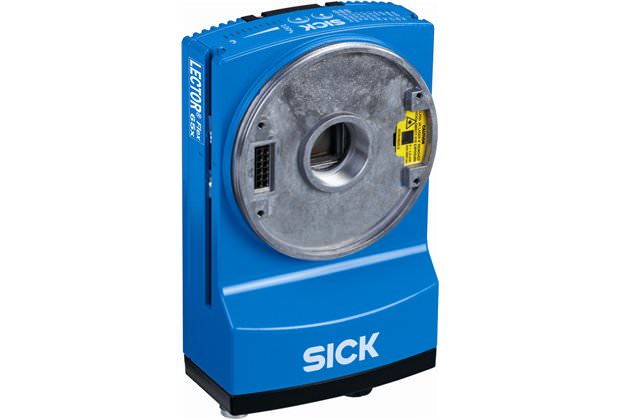

Считывание кодов по изображению Lector®65x / Lector®652 Flex - V2D652R-MCXXA6 Flex - 1063404 (sick151200)

Поставляем Считывание кодов по изображению Lector®65x / Lector®652 Flex - V2D652R-MCXXA6 Flex - 1063404 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick151200

Производитель

Sick

Категория

Считывание кодов по изображению

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание Lector®65x / Lector®652 Flex - V2D652R-MCXXA6 Flex - 1063404

Features

Reading field:	Side
Focus:	Adjustable focus (manually)
Sensor:	CMOS matrix sensor, gray scale values
Sensor resolution:	2,048 px x 1,088 px
Code resolution:	?0.1 mm 1)
Reading distance:	300 mm ... 2,200 mm, depends on lens used 2)
Scanning frequency:	70 Hz, at 2 megapixels resolution
Light source:	Lighting LEDs: - (to be ordered separately as accessory) aiming laser: visible red light (? = 630 nm ... 680 nm)
Laser class:	1M (IEC 60825-1 (2007-3)), complies with 21 CFR 1040.10 except for the tolerance according to “Laser Notice No. 50” from June 24, 2007
footnote	1) Depends on lens used 2) For details see field of view

Performance

Bar code types:	Interleaved 2 of 5, Codabar, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, GS1-128 / EAN 128, Pharmacode, UPC / GTIN / EAN
2D code types:	Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code
Internal image storage:	512 MB
Code qualification:	On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 18004
Stacked code types:	PDF417

Interfaces

Function (Serial (RS-232, RS-422)):	Host, AUX
Data transmission rate (Serial (RS-232, RS-422)):	300 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
Remark (USB):	USB 2.0
Function (Ethernet):	Host, AUX, image transmission
Data transmission rate (Ethernet):	10/100/1,000 Mbit/s
Protocol (Ethernet):	TCP/IP, FTP (image transmission), EtherNet/IP, PROFINET (optional via external connection module CDF600-2)
Function (CAN bus):	SICK CAN sensor network (Master/Slave, Multiplexer/Server)
Data transmission rate (CAN bus):	20 kbit/s ... 1 Mbit/s
Protocol (CAN bus):	CSN (SICK CAN Sensor Network)
Remark (PROFIBUS DP):	Optional via external connection module (CDF600-2)
DeviceNet:	-
Acoustic indicators:	Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
Control elements:	2 buttons (choose and start/stop functions)
Optical indicators:	21 LEDs (10 x status display, 10 x LED bar graph, 1 green feedback spot)
Switching inputs:	4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 in CDB650/CDM420)
Switching outputs:	6 (CDB650: “Result 1”, “Result 2”, “Result 3”, “Result 4”, 2 external outputs via CMC600 or CDM420: “Result 1”, “Result 2”, 2 external outputs via CMC600 or cable with open end “Result 1”, “Result 2”, “Result 3”, “Result 4”)
Reading pulse:	Auto pulse, CAN, Ethernet, Non-powered, Presentation mode, Switching inputs, Serial interface
Memory card:	MicroSD memory card (flash card) max. 16 GB, optional
Configuration software:	SOPAS ET

Mechanics/electronics

Operating voltage:	24 V DC± 20 %
Power consumption:	Typ. 20 W, ± 20 %
Electrical connection:	1 x M12, 17-pin plug (serial, CAN, I/Os, power supply), 1 x M8, 4-pin socket (USB), 2 x M12, 8-pin socket (Ethernet, P1 not yet with function)
Housing:	Die-cast aluminum
Housing color:	Light blue (RAL 5012)
Weight:	635 g
Dimensions:	142 mm x 89 mm x 46 mm 1)
Enclosure rating:	IP 65 (EN 60529 (1991-10), EN 60529/A2 (2002-02))
Protection class:	III
Lens:	Exchangeable (C-mount), to be ordered separately as accessory
footnote	1) Only housing without lens and protective hood

Ambient data

Electromagnetic compatibility (EMC):	EN 61000-6-2 (2005-08) / EN 61000-6-3 (2007-01)
Shock resistance:	EN 60068-2-6
Electrical safety:	EN 60950-1 (2011-01)
Ambient operating temperature:	0 °C ... +50 °C
Storage temperature:	-20 °C ... +70 °C
Permissible relative humidity:	90 %, non-condensing
Ambient light immunity:	2,000 lx, on code
