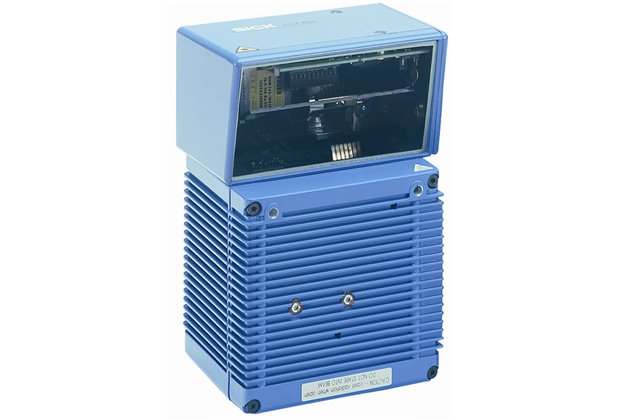

Сканер штрихкода CLV49x / CLV490-0/1 / Standard Density - CLV490-1010 - 1016959 (sick142457)

Поставляем Сканер штрихкода CLV49x / CLV490-0/1 / Standard Density - CLV490-1010 - 1016959 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick142457

Производитель

Sick

Категория

Сканеры штрихкода

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание CLV49x / CLV490-0/1 / Standard Density - CLV490-1010 - 1016959

Features

Version:	Standard Density
Connection type:	Standard
Reading field:	Oscillating mirror
Scanner design:	Line scanner
Focus:	Auto focus (alternative: dynamic focus control)
Focus adjustment time:	? 20 ms
Focus trigger source:	Data interface, Switching inputs 'IN 0 ... IN 4', Timer
Light source:	Visible red light (650 nm)
MTBF:	80,000 h
Laser class:	2 (DIN EN 60825-1)
Field of view:	? 50 °
Code resolution:	0.25 mm ... 1 mm
Reading distance:	500 mm ... 2,100 mm 1)
Oscillating mirror functions:	Fixed (adjustable position), One shot, Oscillating (variable or fixed amplitude)
Oscillation frequency:	0.5 Hz ... 4 Hz
Angle of deflection:	-20 ° ... 20 ° (can be adjusted via software)
Scanning frequency:	600 Hz ... 1,200 Hz
No. of distance configurations:	8

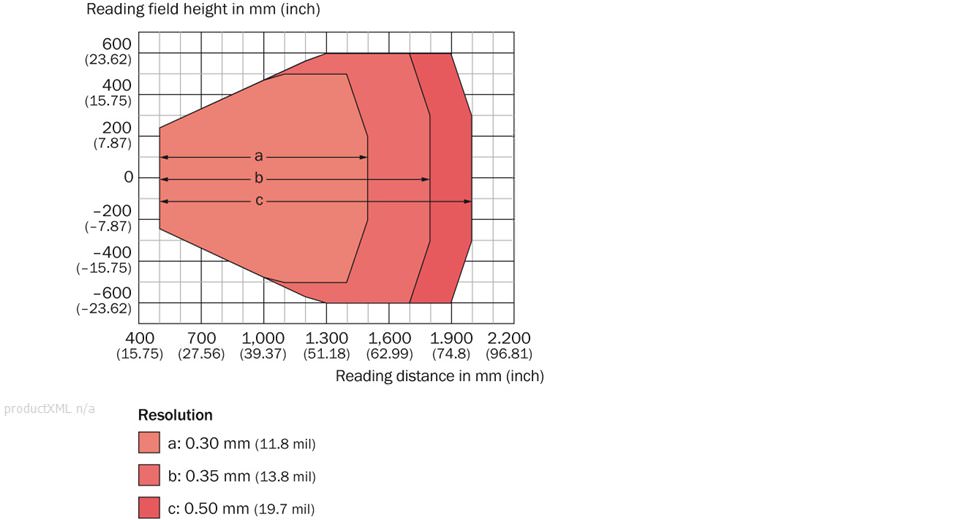

footnote	1) For details see reading field diagram

Performance

Bar code types:	Interleaved 2 of 5, All current code types, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
Print ratio:	2:1 ... 3:1
No. of codes per scan:	1 ... 12 (Standard decoder), 1 ... 6 (SMART decoder)
No. of codes per reading interval:	1 ... 50 (auto-discriminating)
No. of characters per reading interval:	600
No. of multiple readings:	1 ... 99

Interfaces

Remark (Serial (RS-232, RS-422/485)):	AUX (only RS-232)
Function (Serial (RS-232, RS-422/485)):	Host, AUX
Data transmission rate (Serial (RS-232, RS-422/485)):	300 Baud ... 57,600 Baud, AUX: 9,600 Baud
Remark (Ethernet):	Optional via external connection module (CDM + CMF)
Function (CAN bus):	SICK CAN sensor network (Master/Slave, Multiplexer)
Protocol (CAN bus):	CANopen, CSN (SICK CAN Sensor Network)
Data transmission rate (CAN bus):	20 kbit/s ... 1 Mbit/s
Remark (PROFIBUS DP):	Optional via external connection module (CDM + CMF)
Remark (DeviceNet):	Optional via external connection module (CDM + CMF)
Switching inputs:	6 (Sensor, IN 0 ... IN 4)
Switching outputs:	4 (“Result 1” ... “Result 4”)
Reading pulse:	Data interface, Non-powered, OTS (Omni tracking), 'Sensor 4' switching input (+ 'IN 4')
Optical indicators:	4 LEDs (function indicator)

Mechanics/electronics

Electrical connection:	1 x 15-pin D-Sub HD device female connector, 1 x 15-pin D-sub HD plug
Operating voltage:	18 V DC ... 30 V DC
Power consumption:	18 W
Housing:	Die-cast aluminum, no materials containing silicone on outside
Housing color:	Light blue (RAL 5012)
Enclosure rating:	IP 65 (DIN 40 050)
Protection class:	III (VDE 0106)
Weight:	2,200 g
Dimensions:	183 mm x 127.5 mm x 97.5 mm

Ambient data

Electromagnetic compatibility (EMC):	EN 61000-6-2 (2001-10) / EN 61000-6-3 (2001-10) / EN 61000-6-3 / A11 (2004-07)
Vibration resistance:	EN 60068-2-6 (1995)
Shock resistance:	EN 60068-2-27 (1993)
Ambient operating temperature:	0 °C ... +40 °C
Storage temperature:	-20 °C ... +70 °C
Permissible relative humidity:	± 90 %, non-condensing
Ambient light immunity:	2,000 lx, on bar code
