Ротационный датчик обратной связи SKS/SKM36 SKS/SKM36 - SKM36-HFA0-K02 - 1034094 (sick144286)

Поставляем Ротационный датчик обратной связи SKS/SKM36 SKS/SKM36 - SKM36-HFA0-K02 - 1034094 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick144286

Производитель

Sick

Категория

Ротационные датчики обратной связи SKS/SKM36

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание SKS/SKM36 - SKM36-HFA0-K02 - 1034094

Performance

Number of sine/cosine periods per revolution:	128
Number of the absolute ascertainable revolutions:	4,096 (Multiturn)
Total number of steps:	16,777,216
Measuring step:	2.5 angular seconds at interpolation of the sine/cosine signals with e.g. 12 Bit
Error limits for the digital absolute value:	± 320 angular seconds (via RS485)
Differential non-linearity:	± 40 angular seconds (Non-linearity within a sine/cosine period)
Operating speed:	9,000 /min, up to which the absolute position can be reliably produced
Available memory area:	1,792 Byte, 1,792 Byte (E2PROM 2048)
Integral non-linearity typ.:	± 80 angular seconds (Error limits for evaluating sine/cosine period)

Механические параметры

Flange type/stator coupling:	Spring mounting plate

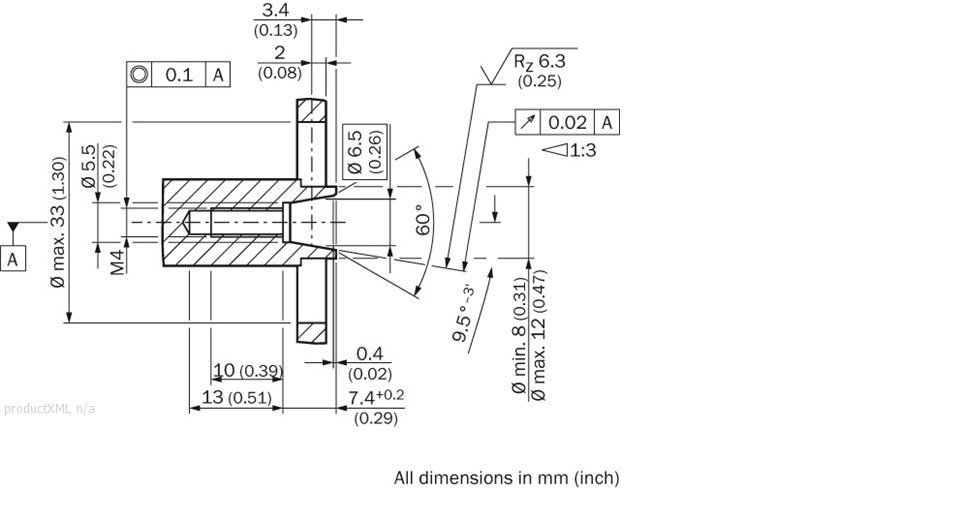

Dimensions:	See dimensional drawing
Mass:	0.07 kg
Moment of inertia of the rotor:	4.5 gcm?
Maximum angular acceleration:	500,000 rad/s?
Operating torque:	0.2 Ncm
Start up torque:	0.3 Ncm
Permissible shaft movement, radial, static:	± 0.1 mm
Permissible shaft movement, radial, dynamic:	± 0.05 mm
Permissible shaft movement, axial, static:	± 0.2 mm
Permissible shaft movement, axial, dynamic:	± 0.1 mm
Life of ball bearings:	3.6 x 10^9 revolutions
Connection type:	Connector, 8-pin, radial
Shaft version:	Tapered shaft

Электрические параметры

Electrical interface:	HIPERFACE
Operating voltage range/supply Voltage:	7 V DC ... 12 V DC
Recommended supply voltage:	8 V DC
Output frequency for sine/cosine signals:	0 kHz ... 65 kHz
Operating power consumption (no load):	60 mA 1)
footnote	1) Without load

Interfaces

Type of code for the absolute value:	Binary
Code sequence:	Increasing, for clockwise shaft rotation, looking in direction 'A' (see dimensional drawing)
Interface signals:	Parameter channel RS 485: digital, Process data channel SIN, REFSIN, COS, REFCOS: analog, differential

Ambient data

Working temperature range:	-20 °C ... +110 °C
Storage temperature range:	-40 °C ... +125 °C, without package
Relative humidity / Condensation:	90 %, Condensation not permitted
Resistance to shocks:	100 g / 6 ms / according to EN 60068-2-27
Resistance to vibration:	50 g / 10 Hz / 2,000 Hz / according to EN 60068-2-6
EMC:	(according to EN 61000-6-2 and EN 61000-6-3) 1)
Enclosure rating:	IP 50 (according to IEC 60529), with mating connector inserted and closed cover
footnote	1) The EMC according to the standards quoted is achieved when the motor feedback system is mounted in an electrically conductive housing, which is connected to the central earthing point of the motor controller via a cable screen. This is also where the GND (0 V) connection of the power supply voltage is linked to earth. Users must perform their own tests when other screen designs are used.
