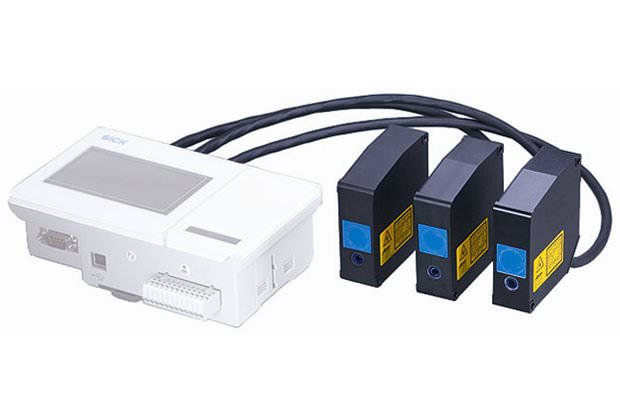

Датчик расстояния OD Precision OD Precision - OD5-25T01 - 6035975 (sick156756)

Поставляем Датчик расстояния OD Precision OD Precision - OD5-25T01 - 6035975 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick156756

Производитель

Sick

Категория

Датчики расстояния OD Precision

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание OD Precision - OD5-25T01 - 6035975

Features

System part:	Sensor head

Performance

Measuring range:	24 mm ... 26 mm, 6 % ... 90 % remission; at default settings
Resolution 1):	0.02 µm
Repeatability 2):	0.06 µm
Linearity 3):	± 1.6 µm
Response time 4) 5):	0.1 ms
Measuring frequency:	10 kHz 6)
Light source:	Laser, red
Typ. light spot size (distance):	25 µm x 35 µm (25 mm)
Additional function:	Automatic sensitivity adjustment, Selectable measuring frequency (automatic / 0.1 ms ... 3.2 ms), Anti interference mode, Glass thickness measurement, Manual sensitivity adjustment, Averaging settings 1 ... 4,096x
Note:	OD Precision sensor head can be used with AOD5-P/N1 or stand-alone via RS-422
Laser class:	1 (EN 60825-1) 7)
Output time:	? 0.1 ms
footnote	1) Measurement on 90 % remission (ceramic, white), for OD25-x measurement on mirror; averaging set to: 256, for OD25-x: 4096 2) Measurement on 90 % remission (ceramic, white), for OD25-x measurement on mirror; averaging set to: 256, for OD25-x: 4096; constant ambient conditions 3) Measurement on 90 % remission (ceramic, white), for OD5-25x measurement on mirror; averaging set to: 4096 4) Time needed for automatic sensitivity adjustment is calculated as: sampling period x 20. At default setting 100 µs (10kHz) this is

Interfaces

Data interface:	RS-422
Laser off input:	1 x laser-off

Mechanics/electronics

Electrical connection 1):	0.5 m cable with connector
Supply voltage Vs 2):	DC 12 V ... 24 V
Warm-up time:	? 5 min

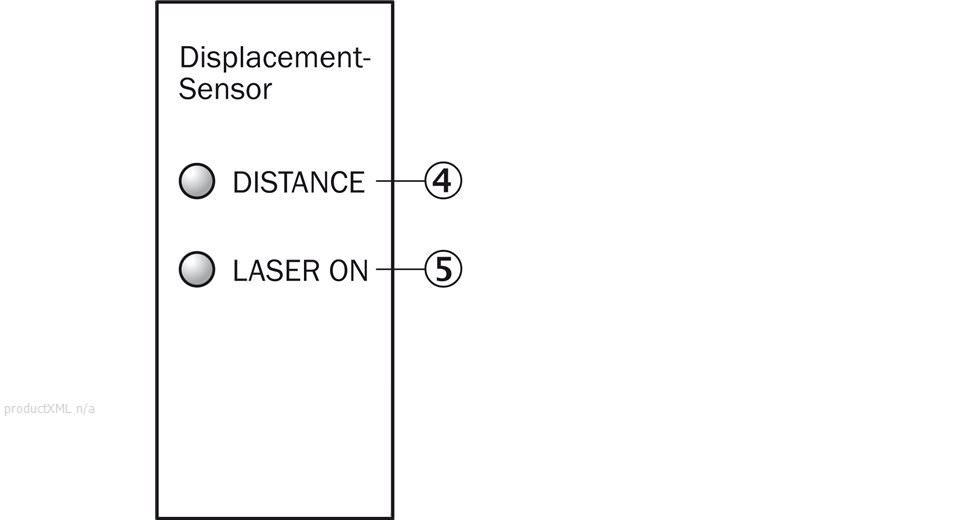

Indication:	LEDs, 4'' color-display on optional controller unit
Weight 3):	250 g
Housing material:	Aluminum housing with glass lens
footnote	1) Extenable by cable to max. 50 m 2) DC 12 V (-5 %) ... DC 24 V (+10 %) 3) Inclusive 0.5 m cable

Ambient data

Enclosure rating:	IP 67
Protection class:	III
Ambient temperature:	Operation: -10 ... +50 °C, Storage: -20 ... +60 °C
Temperature drift:	± 0.01 % FS/K (FS = Full Scale = Measuring range of sensor)
Vibration resistance:	10 Hz ... 55 Hz (amplitude 1.5 mm, x-, y-, z-axis 2 hours each)
Shock resistance:	50 G (x-, y-, z-axis 3 times each)
Relative humidity (not condensing):	35 % ... 85 %
Typ. ambient light safety:	Artificial light: ? 3,000 lx, Sunlight: ? 10,000 lx
