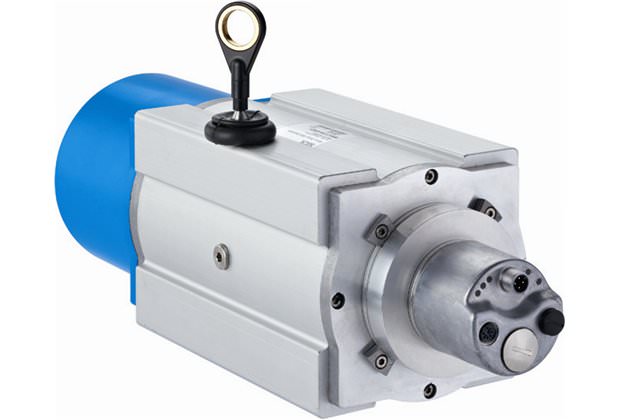

Тросиковый датчик расстояния HighLine HighLine - BTF13-E1BM3099 - 1061006 (sick150512)

Поставляем Тросиковый датчик расстояния HighLine HighLine - BTF13-E1BM3099 - 1061006 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick150512

Производитель

Sick

Категория

Тросиковые датчики расстояния HighLine

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание HighLine - BTF13-E1BM3099 - 1061006

Performance

Measurement range:	0 m ... 30 m
Repeatability:	? 2 mm 1)
Linearity:	? ± 2 mm 2)
Hysteresis:	? 5 mm 3)
Resolution (wire draw + encoder):	0.001 mm 4) 5)
footnote	1) 3) Value refers to wire draw mechanism 2) 4) 5)

Механические параметры

Mass (including encoder):	6.4 kg
Mass (mechanics):	6.2 kg
Measuring wire diameter:	0.81 mm
Measuring wire material:	Highly flexible stranded steel 1.4401 stainless steel V4A
Housing material, wire draw mechanism:	Aluminum (anodised), plastic
Spring return force:	10 N ... 20 N 1)
Life of wire draw mechanism:	1 million cycles 2)
Actual length of cable extension:	30.2 m
Wire acceleration:	15 m/s?
Operating speed:	4 m/s
Mounted encoder:	AFM60 EtherCAT
Mounted mechanic:	MRA-F130-130D1
Part number mechanic:	6028629
Part number encoder:	1059061
Mass (measuring wire):	2.6 g/m
Length of wire pulled out per revolution:	332.4 mm 3)
Number of steps per revolution:	262,144
footnote	1) These values were measred at an ambient temperature of 25 °C. There may be variations at other temperatures. 2) 3)

Электрические параметры

Initialization time:	Ca. 12 s 1)
Supply voltage:	10 V ... 30 V
Power consumption:	3 W
MTTFd: mean time to dangerous failure:	80 a 2) 3)
footnote	1) Valid positional data can be read once this time has elapsed. 2) This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532. 3) The value applies to the mounted encoder

Interfaces

Electrical interface:	EtherCAT®
Connection type:	Connector 3 x M12, 4-pin, axial
Protocol:	EtherCAT, CoE (CiA DS-301)
SET (electronic adjustment):	Via PRESET push button or protocol
Encoder profile:	CiA DS-406
Encoder:	Absolute encoders

Ambient data

EMC:	(according to EN 61000-6-2 and EN 61000-6-3)
Enclosure rating encoder:	IP 67
Enclosure rating mechanic:	IP 64
Resistance to shocks:	100 g, 6 ms (according to EN 60068-2-27)
Resistance to vibration:	30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Relative humidity / Condensation:	90 % (condensation of the optical scanning not permitted)
Working temperature range (encoder):	-30 °C ... +70 °C
Working temperature range (mechanics):	-30 °C ... +70 °C
Working temperature range (combination):	Wird definiert durch den hoheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
