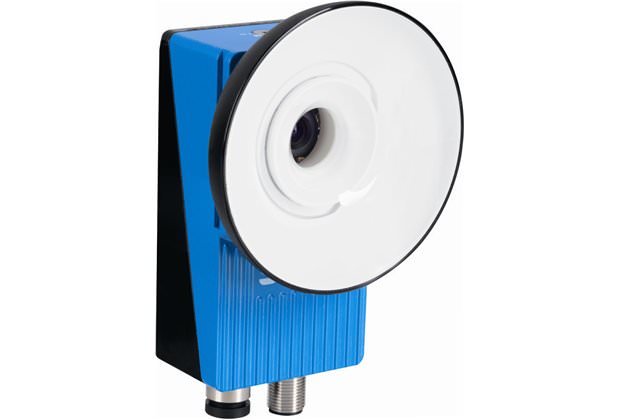

2D зрение Inspector, Inspector I-series, Inspector I10 Dome - VSPI-1D111 - 1044038 (sick146930)

Поставляем 2D зрение Inspector, Inspector I-series, Inspector I10 Dome - VSPI-1D111 - 1044038 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick146930

Производитель

Sick

Категория

2D зрение

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание Inspector, Inspector I-series, Inspector I10 Dome - VSPI-1D111 - 1044038

Features

Task:	Inspection
Technology:	2D Image analysis Snapshot
Toolset:	Object locator Edge pixel count Contour Pixel count
Focus:	Adjustable focus (manually)
Sensor:	CMOS matrix sensor, gray scale values
Sensing distance:	? 50 mm
Working distance internal illumination:	50 mm
Field of view internal illumination:	30 mm x 30 mm
Spectral range:	Ca. 400 nm ... 750 nm
LED class:	Risk group 1 (low risk, IEC62471 : 2006)
Focal length:	6 mm
Offline support:	Emulator
Sensor resolution:	384 px x 384 px
Internal lighting:	White dome light
Robot coordinate alignment:	-

Performance

Maximum performance:	250 fps
Typical performance:	40 fps
Number of inspections:	32
Reference images:	16 objects

Interfaces

Operator interfaces:	Inspector Viewer
Data store and retrieve:	Record images on PC 30 images device log
Digital inputs:	4 inputs (24 V)
Configurable inputs:	Reference object selection Encoder input External trigger External teach
Digital outputs:	3 outputs, 24 V (B-type)
Output current:	100 mA
Default outputs:	All pass Any fail No object detected
Maximum encoder frequency:	40 kHz
Control of external illumination:	5 V TTL
Serial (RS-232, RS-422):	-
Data transmission rate (Ethernet):	100 Mbit/s
Configuration software:	SOPAS

Mechanics/electronics

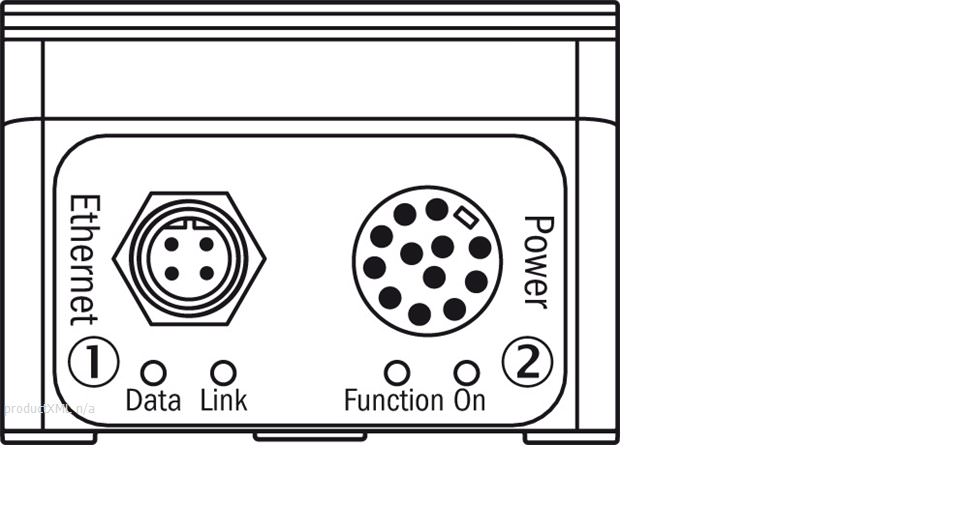

Connectors:	M12, 12-pin male connector M12, 4-pin female connector
Supply voltage:	24 V DC± 20 %
Power consumption:	< 450 mA Without output load
Ripple:	< 5 Vpp
Enclosure rating:	IP 67
Housing material:	Aluminum
Window material:	PMMA
Dimensions (L x W x H):	100 mm x 53 mm x 38 mm
Optics:	Integrated
Weight:	400 g

Ambient data

Shock load:	EN 60068-2-27
Vibration load:	IEC 60068-2-6
Ambient operating temperature 1):	0 °C ... +45 °C
Ambient storage temperature 2):	-20 °C ... +70 °C
footnote	1) 2) Relative humidity: 35 % ... 85 %, 95 % at operation
