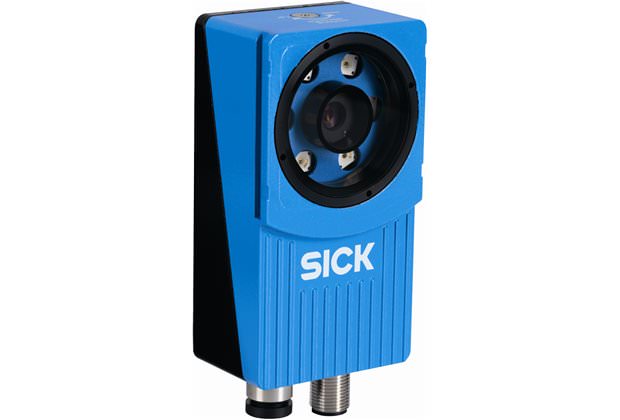

2D зрение Inspector, Inspector PIM-series, Inspector PIM60-IR Base - VSPM-6B2413 - 1064566 (sick151422)

Поставляем 2D зрение Inspector, Inspector PIM-series, Inspector PIM60-IR Base - VSPM-6B2413 - 1064566 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick151422

Производитель

Sick

Категория

2D зрение

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание Inspector, Inspector PIM-series, Inspector PIM60-IR Base - VSPM-6B2413 - 1064566

Features

Task:	Inspection Measuring Positioning
Technology:	2D Image analysis Snapshot
Toolset:	Pattern Blob locator Object locator Polygon Edge counter Find maximum Edge pixel count Pixel count Distance Edge Circle Angle
Focus:	Adjustable focus (manually)
Sensor:	CMOS matrix sensor, gray scale values
Sensing distance:	? 50 mm
Working distance internal illumination:	50 mm ... 200 mm
Field of view internal illumination:	Free of choice by lens selection
Spectral range:	Ca. 370 nm ... 900 nm
LED class:	Risk group 0 (exempt risk, IEC62471 : 2006)
Offline support:	Emulator
Calibration:	Perspective and lens distortion correction, mm results
Sensor resolution:	640 px x 480 px
Internal lighting:	Infrared

Performance

Maximum performance:	200 fps
Typical performance:	40 fps
Number of inspections:	64
Reference images:	32 objects

Interfaces

Operator interfaces:	Web server
Data store and retrieve:	Record images on PC Store images to FTP 30 images device log
Ethernet communication:	Web API
Digital inputs:	4 inputs (24 V)
Configurable inputs:	Reference object selection Encoder input External trigger External teach
Digital outputs:	3 outputs, 24 V (B-type)
Configurable outputs:	Output by logical expressions, Store images to FTP overflow
Output current:	100 mA
Default outputs:	All pass Any fail No object detected
Maximum encoder frequency:	40 kHz
Control of external illumination:	5 V TTL
I/O Box extension:	16 outputs 5 x inputs for object selection
Serial (RS-232, RS-422):	-
Data transmission rate (Ethernet):	100 Mbit/s
Protocol (Ethernet):	TCP/IP, EtherNet/IP
Configuration software:	SOPAS

Mechanics/electronics

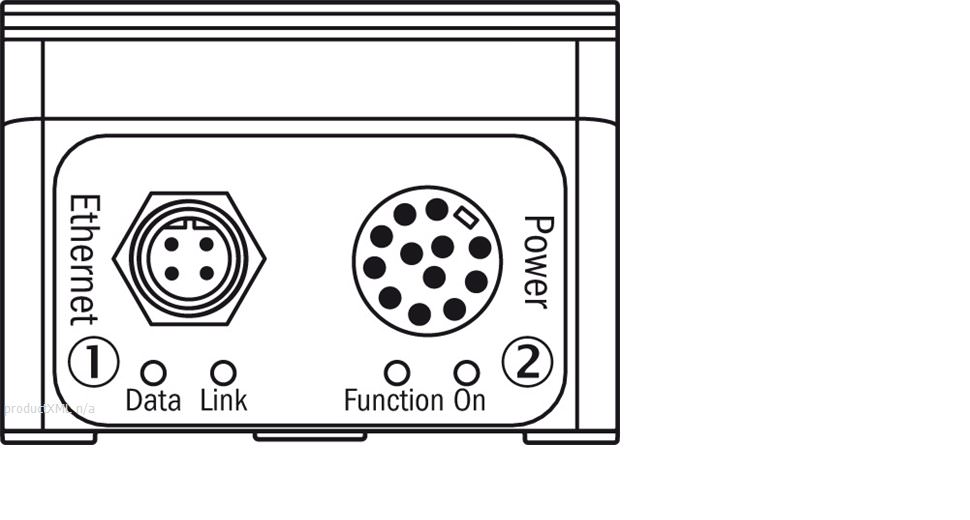

Connectors:	M12, 12-pin male connector M12, 4-pin female connector
Supply voltage:	24 V DC± 20 %
Power consumption:	< 450 mA Without output load
Ripple:	< 5 Vpp
Enclosure rating:	IP 67
Housing material:	Aluminum
Window material:	No front window included
Dimensions (L x W x H):	100 mm x 53 mm x 38 mm
Optics:	Not included (M12-mount)
Weight:	350 g

Ambient data

Shock load:	EN 60068-2-27
Vibration load:	IEC 60068-2-6
Ambient temperature operation 1):	0 °C ... +45 °C
Ambient storage temperature 2):	-20 °C ... +70 °C
footnote	1) 2) Relative humidity: 35 % ... 85 %, 95 % at operation
