Описание

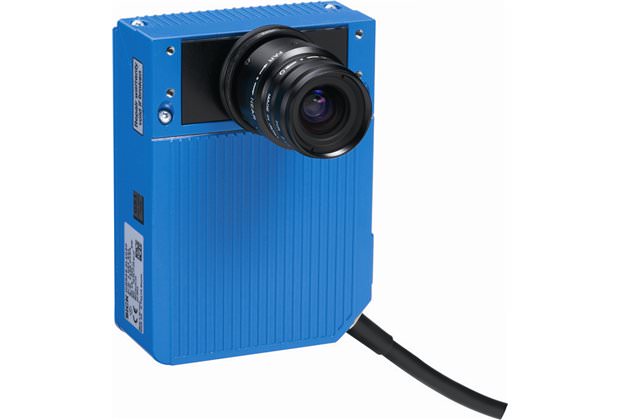

Описание ICR84x-2 FlexLens / ICR847-2L FlexLens - ICR847-2L1030 FlexLens - 1056546

Features

Reading field:	Side
Focus:	Variable (per interchangeable lens)
Sensor:	CMOS matrix sensor
Sensor resolution:	1,280 px x 960 px x 1.2 megapixel )
Code resolution:	?0.1 mm 1)
Reading distance:	0.1 m ... 3 m 2) 3)
Scanning frequency:	38 Hz, at full resolution
Light source:	External illumination
MTBF:	75,000 h
footnote	1) 2) Depends on lens used; valid for Data Matrix, PDF417 and 1D codes with good printing quality 3) For details see reading field diagram

Performance

Bar code types:	Interleaved 2 of 5, Codabar, Code 128, Code 39, GS1-128 / EAN 128, Pharmacode, UPC / GTIN / EAN
2D code types:	Data Matrix ECC200, GS1 Data-Matrix, QR code
No. of codes per scan:	1 ... 50
No. of codes per reading interval:	1 ... 50
No. of characters per reading interval:	4,000

Interfaces

Function (Serial (RS-232)):	Host, AUX
Data transmission rate (Serial (RS-232)):	300 Baud ... 57,600 Baud, AUX: 9,600 Baud
Function (Ethernet):	Host, AUX, image transmission
Data transmission rate (Ethernet):	10/100 Mbit
Protocol (Ethernet):	TCP/IP, FTP (image transmission), PROFINET (optional via external connection module CDM)
Function (CAN bus):	SICK CAN sensor network (Master/Slave, Multiplexer)
Data transmission rate (CAN bus):	10 kbit/s ... 1 Mbit/s
Protocol (CAN bus):	CANopen, CSN (SICK CAN Sensor Network)
Remark (PROFIBUS DP):	Optional via external connection module (CDM + CMF)
Remark (DeviceNet):	Optional via external connection module (CDM + CMF)
Acoustic indicators:	Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
Optical indicators:	6 LEDs (status displays)
Switching inputs:	2
Switching outputs:	2 (Result 1 NPN, Result 2 PNP)
Reading pulse:	Non-powered, Switching inputs, Serial interface

Mechanics/electronics

Operating voltage:	15 V DC ... 30 V DC
Power consumption:	8 W
Electrical connection:	1, 1 x M12 cylindrical connector (4-pin female connector, Ethernet)
Housing:	Die-cast zinc
Housing color:	Light blue (RAL 5012)
Weight:	900 g, with connecting cable
Dimensions:	123.3 mm x 80 mm x 39 mm
Enclosure rating:	IP 30, IP 65 (EN 60529) 1) 2)
Protection class:	III (EN 61140)
Lens:	C-mount
footnote	1) For installed IP 65 Ethernet cable and IP 65 lens cover or for IP 65 cover and IP 65 lens cover 2) Without covered Ethernet connection or with standard Ethernet cable and without lens cover.

Ambient data

Electromagnetic compatibility (EMC):	EN 61000-6-2 / EN 61000-6-4
Vibration resistance:	EN 60068-2-6
Shock resistance:	EN 60068-2-27
Ambient operating temperature:	0 °C ... +40 °C
Storage temperature:	-20 °C ... +70 °C
Permissible relative humidity:	± 90 %, non-condensing
Ambient light immunity:	2,000 lx, on bar code
