Описание

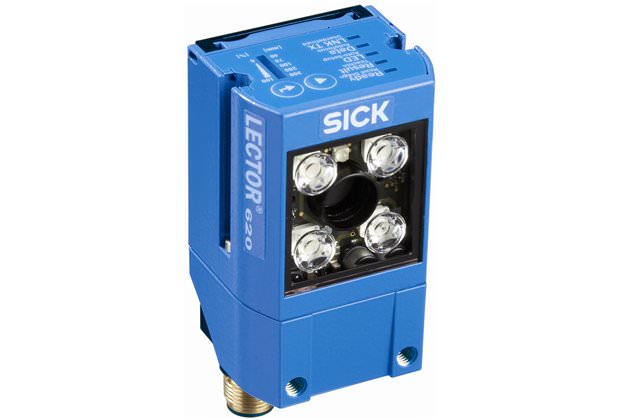

Описание Lector®62x / Lector®620 Professional - ICR620S-T11504 Professional - 1054375

Features

Reading field:	Side
Focus:	Teach auto focus
Sensor:	CMOS matrix sensor, gray scale values
Sensor resolution:	752 px x 480 px (WVGA)
Focal length:	7 mm
Code resolution:	?0.1 mm 1)
Reading distance:	40 mm ... 1,500 mm 2) 3)
Scanning frequency:	60 Hz, WVGA resolution
Internal lighting:	Blue, Red
Light source:	Lighting LEDs: visible red light (? = 617 ± 15 nm), visible blue light (? = 470 ± 15 nm) feedback spot: visible green light (? = 525 ± 15 nm) Aiming laser: visible red light (? = 630 nm ... 680 nm)
Laser class:	1 (IEC 60825-1 (2007-3)), complies with 21 CFR 1040.10 except for the tolerance according to “Laser Notice No. 50” from June 24, 2007
LED class:	1 (IEC 62471 (2006-07) / EN 62471 (2008-09)), radiance LB < 10 kW/(m?sr) within 100 s, LR < 28/? kW/(m?sr) within 10 s at distance > 200 mm
MTBF:	75,000 h

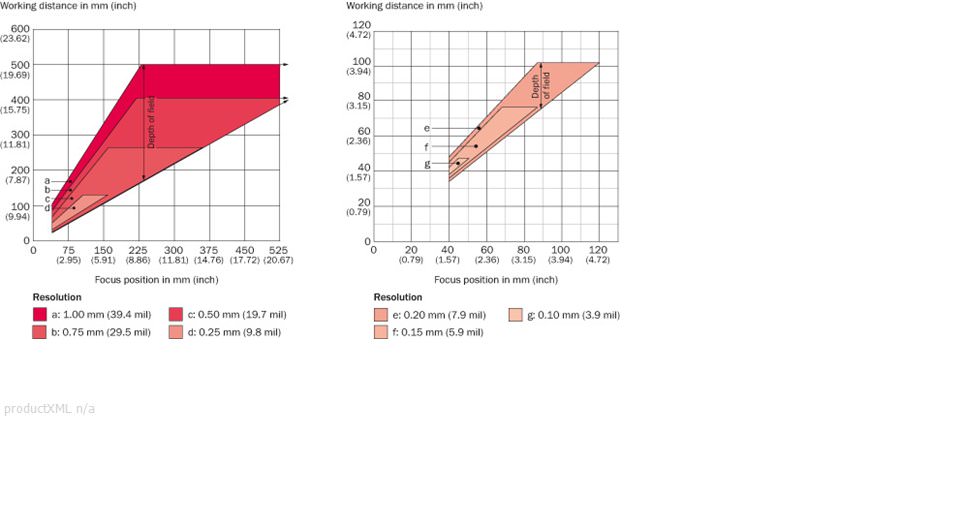

footnote	1) 2) Valid for Data Matrix, PDF417 and 1D codes with good printing quality 3) For details see reading field diagram

Performance

Bar code types:	Interleaved 2 of 5, Codabar, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, GS1-128 / EAN 128, Pharmacode, UPC / GTIN / EAN
2D code types:	Data Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code
No. of codes per reading interval:	1 ... 50
No. of characters per reading interval:	500 (for multiplexer function in CAN operation)
Transport speed:	?4 m/s
Internal image storage:	135 MB
Code qualification:	On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 18004

Interfaces

Function (Serial (RS-232, RS-422)):	Host, AUX
Data transmission rate (Serial (RS-232, RS-422)):	300 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
Remark (USB):	USB 2.0
Function (Ethernet):	Host, AUX, image transmission, OPC DA Server
Data transmission rate (Ethernet):	10/100 Mbit
Protocol (Ethernet):	TCP/IP, FTP (image transmission), PROFINET (with special software only), EtherNet/IP, EtherCAT (optional via external connection module CDF600)
Function (CAN bus):	SICK CAN sensor network (Master/Slave, Multiplexer/Server)
Data transmission rate (CAN bus):	20 kbit/s ... 1 Mbit/s
Protocol (CAN bus):	CANopen, CSN (SICK CAN Sensor Network)
Remark (PROFIBUS DP):	Optional via external connection module (CDF600-2)
DeviceNet:	-
Acoustic indicators:	Beeper/buzzer (can be switched off, can be assigned a function to signal a result)
Control elements:	2 buttons (choose and start/stop functions)
Optical indicators:	16 LEDs (5 x status display, 10 x LED bar graph, 1 green feedback spot)
Switching inputs:	4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
Switching outputs:	4 (“Result 1”, “Result 2”, 2 outputs via CMC in CDB620/CDM420 or “Result 1”, “Result 2”,“Result 3”, “Result 4” using the 17-pin cable with open end)
Reading pulse:	Auto pulse, CAN, Ethernet, Non-powered, Presentation mode, Switching inputs, Serial interface
Memory card:	MicroSD memory card (flash card) max. 32 GB, optional
Configuration software:	SOPAS ET

Mechanics/electronics

Operating voltage:	10 V DC ... 30 V DC
Power consumption:	Typ. 3 W
Electrical connection:	1 x M12, 17-pin male connector, 1 x M12, 4-pin female connector Ethernet, Circular plug-in connector
Housing:	Die-cast aluminum
Housing color:	Light blue (RAL 5012)
Weight:	170 g
Dimensions:	71 mm x 43 mm x 35.6 mm 1)
Enclosure rating:	IP 67 (EN 60529 (1991-10), EN 60529/A2 (2002-02))
Protection class:	III
Lens:	7 mm, integrated
footnote	1) Swivel connector is 17.8 mm longer

Ambient data

Electromagnetic compatibility (EMC):	EN 61000-6-2 (2006-03) / EN 61000-6-2 (2009-05)
Vibration resistance:	EN 60068-2-6 (2008-02)
Shock resistance:	EN 60068-2-27 (2009-05)
Electrical safety:	EN 60950-1 (2006-04) / EN 60950-1/A11 (2009-03)
Ambient operating temperature:	0 °C ... +50 °C
Storage temperature:	-20 °C ... +70 °C
Permissible relative humidity:	90 %, non-condensing
Ambient light immunity:	2,000 lx, on code
