Линейная система обратной связи HIPERFACEВ® TTK70 - TTK70-HXA0-K02 - 1037434 (sick145382)

Поставляем Линейная система обратной связи HIPERFACEВ® TTK70 - TTK70-HXA0-K02 - 1037434 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick145382

Производитель

Sick

Категория

Линейные системы обратной связи HIPERFACEВ®

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Фильтр FILTER ELEMENT (100 MESH), DF1050-080, part number 10-10- 100793-5 (FEX-801/5 А/В)

Смотреть ещё

Описание

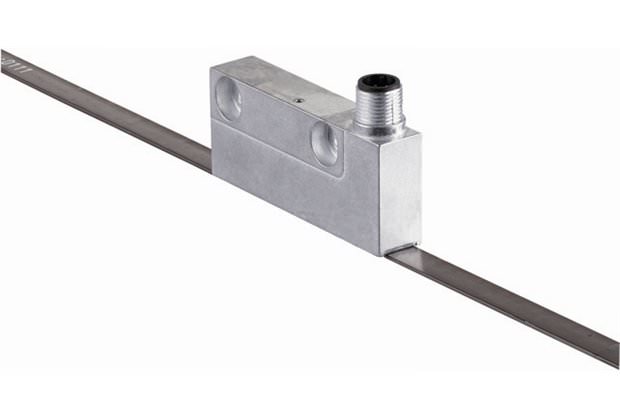

Описание TTK70 - TTK70-HXA0-K02 - 1037434

Performance

Measuring step:	0.244 µm at interpolation of the sine/cosine signals with e.g. 12 Bit
Length of period:	1 mm
Measuring length:	Max. 4,000 mm
Available memory area:	1,792 Byte, 1,792 Byte (E2PROM 2048)
System accuary (ambient temperature):	± 10 µm (+20 °C)
Repeatability (Ta not constant):	< 5 µm
Magnetic strip length:	Measurement length + 80 mm
System part:	Read head
Measured value backlash:	< 10 µm

Механические параметры

Dimensions:	See dimensional drawing
Mass:	Read head 0.06 kg without cable, magnetic tape 0.18 kg/m
Material:	Read head die-cast zinc, magnetic tape 17410 hard ferrite 9/28 P
Piston speed:	10 m/s
Operating speed up to which the absolute position can be rel:	1.3 m/s

Электрические параметры

Electrical interface:	HIPERFACE
Operating voltage range/supply Voltage:	7 V DC ... 12 V DC
Recommended supply voltage:	8 V DC
Operating power consumption (no load):	? 65 mA 1)
footnote	1) 100 mA approx. during adjustment

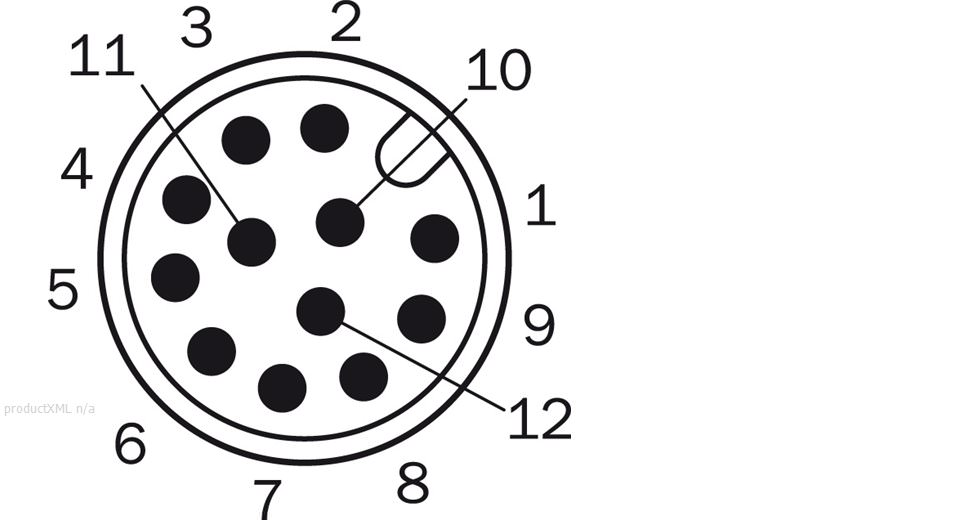

Interfaces

Type of code for the absolute value:	Binary
Interface signals:	Parameter channel RS 485: digital, Process data channel SIN, REFSIN, COS, REFCOS: analog, differential

Ambient data

Working temperature range:	-30 °C ... +80 °C
Storage temperature range:	-40 °C ... +85 °C, without package
Relative humidity / Condensation:	100 %, Condensation allowed
Resistance to shocks:	30 g / 6 ms / EN 60068-2-27
Resistance to vibration:	20 g / 10 Hz / 2,000 Hz / EN 60068-2-6
EMC:	(EN 61000-6-2) (EN 61000-6-3) 1)
Enclosure rating:	IP 65 (according to IEC 60529), with mating connector inserted
Temperature coefficient magnetic tape:	(11 ± 1) µm/K/m
Maximum permitted ambient field strength:	< 3 kA/m ... 4 kA/m (3.8 mT ... 5 mT) (to guarantee compliance with the quoted accuracy values) 2)
Maximum permitted field strength:	< 150 kA/m (< 190 mT) (to ensure that the magnetic tape is not permanently damaged)
footnote	1) The EMC according to the standars quoted is achieved when the motor feedback system with put-on mating connector is connected to the central earthing point of the motor controller via a cable screen. Users must perform their own tests when other screen designs are used. 2) The maximum permitted external field influence is reached when the position value deviates from the original value (without external field influence) by more than 5 µm. This value is reached when, at the sensor location, a field strength of 3 kA/m to 4 kA/m (3.8 mT to 5 mT) occurs in addition to the field strength of the magnetic tape.
