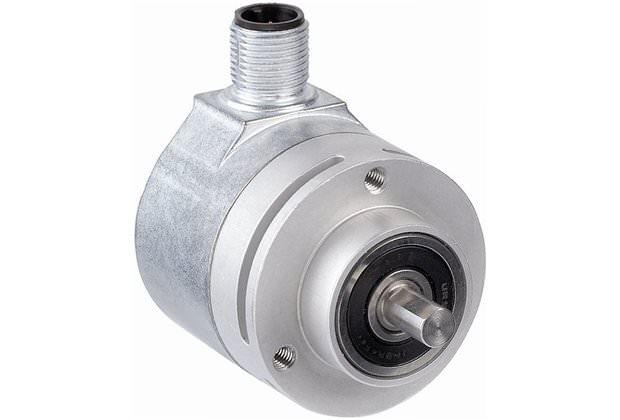

Описание SKS/SKM36 - SKS36S-HVA0-K02 - 1036557

Safety-related parameters

Safety integrity level:	SIL2 (IEC 61508), SILCL2 (IEC 62061)
Category:	3 (EN ISO 13849)
Performance level:	PL d EN ISO 13849 1)
TM (mission time):	20 a (EN ISO 13849)
PFHD: probability of dangerous failure per hour:	1.3 * 1E-08 2)
MTTFd: mean time to dangerous failure:	874 a (EN ISO 13849)
footnote	1) For more detailed information on the exact configuration of your machine/unit, please consult your relevant SICK branch office. 2) The values displayed apply to a diagnostic degree of coverage of 90%, which must be achieved by the external drive system

Performance

Number of sine/cosine periods per revolution:	128
Number of the absolute ascertainable revolutions:	1 (Singleturn)
Total number of steps:	4,096
Measuring step:	2.5 angular seconds at interpolation of the sine/cosine signals with e.g. 12 Bit
Error limits for the digital absolute value:	± 320 angular seconds (via RS485)
Differential non-linearity:	(Non-linearity within a sine/cosine period)
Operating speed:	6,000 /min, up to which the absolute position can be reliably produced
Available memory area:	1,792 Byte, 1,792 Byte (E2PROM 2048)
Integral non-linearity typ.:	± 120 angular seconds (Error limits for evaluating sine/cosine period)

Механические параметры

Shaft diameter:	6 mm
Flange type/stator coupling:	Servo-/face mount flange

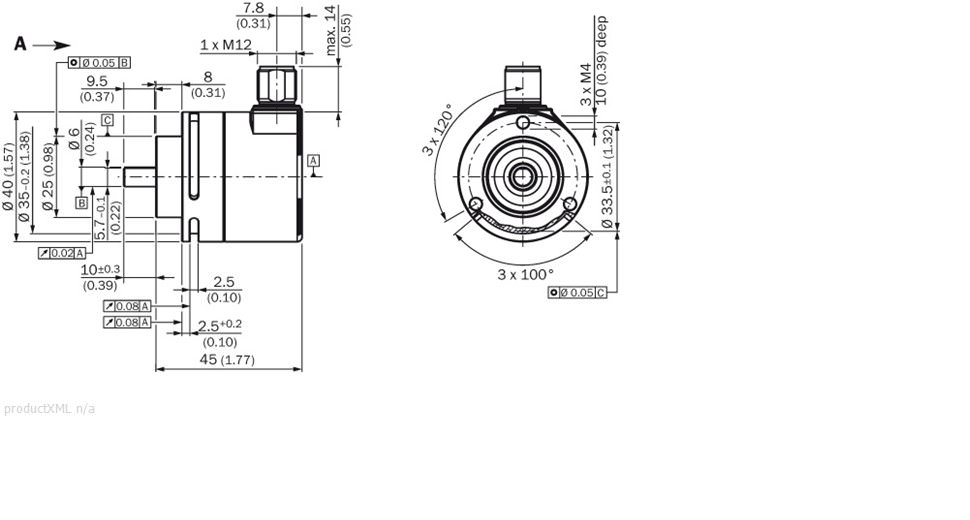

Dimensions:	See dimensional drawing
Mass:	0.14 kg
Moment of inertia of the rotor:	6 gcm?
Maximum angular acceleration:	500,000 rad/s?
Operating torque:	0.6 Ncm
Start up torque:	0.9 Ncm
Life of ball bearings:	2.0 x 10^9 revolutions
Connection type:	Male connector M12, 8-pin, radial
Shaft version:	Solid shaft
Permissible Load capacity of shaft:	10 N (radial), 5 N (axial)

Электрические параметры

Electrical interface:	HIPERFACE
Operating voltage range/supply Voltage:	7 V DC ... 12 V DC
Recommended supply voltage:	8 V DC
Output frequency for sine/cosine signals:	0 kHz ... 65 kHz
Operating power consumption (no load):	60 mA 1)
footnote	1) Without load

Interfaces

Type of code for the absolute value:	Binary
Code sequence:	Increasing, for clockwise shaft rotation, looking in direction 'A' (see dimensional drawing)
Interface signals:	Parameter channel RS 485: digital, Process data channel SIN, REFSIN, COS, REFCOS: analog, differential

Ambient data

Working temperature range:	-20 °C ... +100 °C
Storage temperature range:	-40 °C ... +125 °C, without package
Relative humidity / Condensation:	90 %, Condensation not permitted
Resistance to shocks:	100 g / 6 ms / according to EN 60068-2-27
Resistance to vibration:	50 g / 10 Hz / 2,000 Hz / according to EN 60068-2-6
EMC:	(according to EN 61000-6-2 and EN 61000-6-3)
Enclosure rating:	IP 65 (according to IEC 60529), with mating connector inserted
