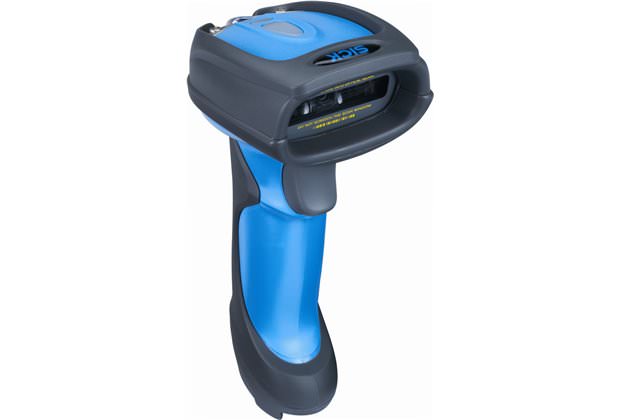

Ручной сканер IDM16x / IDM161 Bluetooth / Industrial / Standard Range - IDM160-BT11E - 6045085 (sick159855)

Поставляем Ручной сканер IDM16x / IDM161 Bluetooth / Industrial / Standard Range - IDM160-BT11E - 6045085 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick159855

Производитель

Sick

Категория

Ручные сканеры

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

Описание IDM16x / IDM161 Bluetooth / Industrial / Standard Range - IDM160-BT11E - 6045085

Features

Field of application:	Industrial
Version:	Standard Range
Scanner design:	1D code hand-held scanner
Light source:	Visible red light (630 nm)
Code resolution:	?0.076 mm
Reading distance:	50 mm ... 800 mm 1)
Scanning frequency:	500 Hz

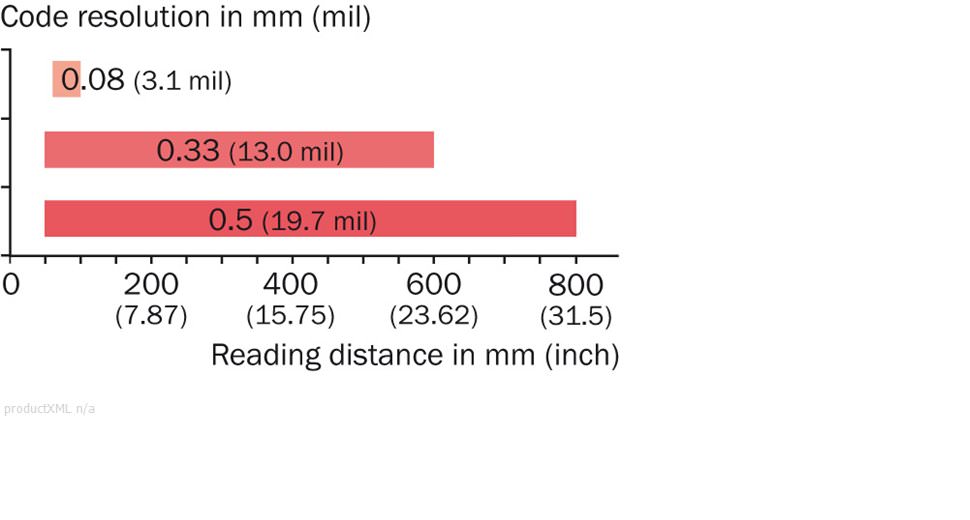

footnote	1) For details see reading field diagram

Performance

Supported code type:	1D
Bar code types:	Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, German ITF Postal Code, Interleaved Matrix 2 of 5, Limited/Expanded GS1 DataBar, Mainland China Postal Code, MSI/Plessey, Standard and Industrial 2 of 5, Telepen, UCC/EAN-128, UK/Plessey, UPC-A, UPC-E
Battery power:	Over 45,000 scans with full battery
Code buffer:	5,000 Codes (EAN)

Interfaces

Function (serial):	RS-232 TTL
Protocol (Ethernet):	TCP/IP (optional via external connection module CDM + CMF), PROFINET (optional via external connection module CDF600-2), EtherCAT (optional via external connection module CDF600)
Remark (Ethernet):	Optional via external connection or fieldbus module
Remark (PROFIBUS DP):	Optional via external connection module (CDF)
Remark (DeviceNet):	Optional via external connection module (CDM + CMF)
Function (PS/2):	Keyboard wedge
Function (USB):	Keyboard wedge, COM-Port emulation
Function (Bluetooth):	Wireless operating range up to 30 m (free view), batch function for expansion of the wireless radius, up to seven scanners communicate with one base station
Optical indicators:	2 LEDs (good read, charge of battery , radio connection status)
Acoustic indicators:	Beeper, disengageable (good read)
Vibration:	Yes
Configuration software:	IDM Setup Tool

Mechanics/electronics

Operating voltage:	5 V DC± 5 %
Power consumption:	Operation (vibration activated): 230 mA, Operation (vibration deactivated): 180 mA, Standby: typ. 90 mA
Housing color:	Blue, gray
Enclosure rating:	IP 65
Weight:	266 g, incl. rechargeable battery
Dimensions:	104 mm x 76 mm x 185 mm

Ambient data

Ambient operating temperature:	-20 °C ... +50 °C
Storage temperature:	-30 °C ... +70 °C
Permissible relative humidity:	± 95 %, non-condensing
Shock resistance:	50 drops From 2 m height on concrete
Ambient light immunity:	100,000 lx
