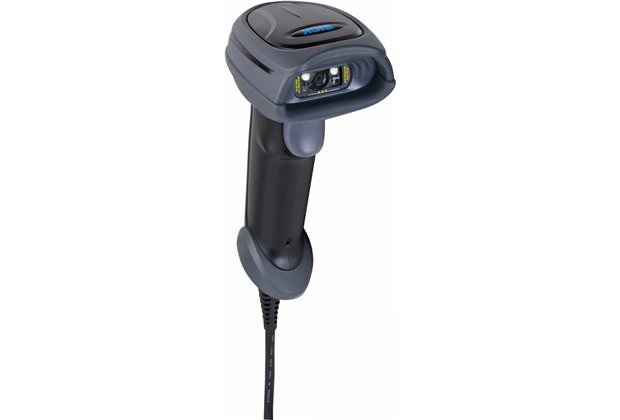

Ручной сканер IDM24x / IDM240 Corded / General Purpose / Standard Range - IDM240-100S - 6050643 (sick160253)

Поставляем Ручной сканер IDM24x / IDM240 Corded / General Purpose / Standard Range - IDM240-100S - 6050643 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick160253

Производитель

Sick

Категория

Ручные сканеры

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Endress+Hauser 5P3B2H-AAIBAAAFAAAD3S2BA2

Смотреть ещё

Описание

Описание IDM24x / IDM240 Corded / General Purpose / Standard Range - IDM240-100S - 6050643

Features

Field of application:	General Purpose
Version:	Standard Range
Scanner design:	2D code hand-held scanner
Light source:	Lighting LEDs: visible red light (630 nm)
Code resolution:	?0.08 mm, ?0.18 mm 1) 2)

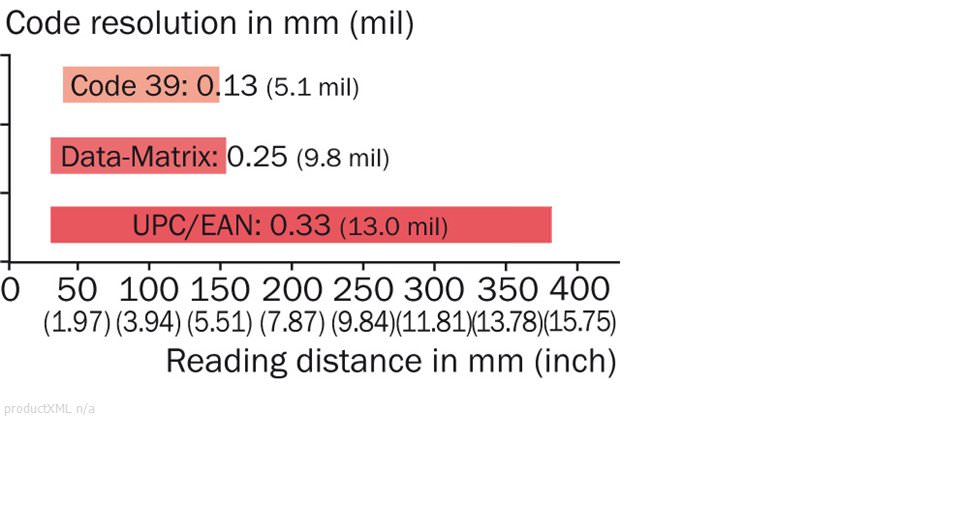

Reading distance:	30 mm ... 380 mm 3)
Scanning frequency:	60 Hz
footnote	1) Valid for Code 39 2) Valid for Data Matrix code 3) For details see reading field diagram

Performance

Supported code type:	1D, 2D, Stacked
Bar code types:	Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post, Codabar, Code 128, Code 39, Code 93, Interleaved 2 of 5, RSS, UPC / GTIN / EAN
2D code types:	Aztec, Data Matrix, MaxiCode, MicroQR-Code, QR code
Stacked code types:	Codablock, Code 16K, Code 49, Composite, MicroPDF417, PDF417

Interfaces

Function (serial):	RS-232 TTL
Protocol (Ethernet):	TCP/IP (optional via external connection module CDM + CMF), PROFINET (optional via external connection module CDF600-2), EtherCAT (optional via external connection module CDF600)
Remark (Ethernet):	Optional via external connection or fieldbus module
Remark (PROFIBUS DP):	Optional via external connection module (CDF600-2)
Remark (DeviceNet):	Optional via external connection module (CDM + CMF)
Function (PS/2):	Keyboard wedge
Function (USB):	Keyboard wedge, COM-Port emulation
Bluetooth:	-
Optical indicators:	2 LEDs (operational status, good read)
Acoustic indicators:	Beeper, disengageable
Vibration:	No
Configuration software:	IDM Setup Tool

Mechanics/electronics

Operating voltage:	5 V DC± 5 %
Power consumption:	Operation: typ. 285 mA, Standby: typ. 160 mA
Housing color:	Gray, Black
Enclosure rating:	IP 41
Weight:	152 g, without cable
Dimensions:	95 mm x 70.5 mm x 161.7 mm

Ambient data

Ambient operating temperature:	-10 °C ... +50 °C
Storage temperature:	-40 °C ... +70 °C
Permissible relative humidity:	95 %, non-condensing
Shock resistance:	25 drops From 1.8 m height on concrete
Ambient light immunity:	100,000 lx
