Ручной сканер IDM26x / IDM260 Corded / Industrial / High Density - IDM260-100H - 6050655 (sick160256)

Поставляем Ручной сканер IDM26x / IDM260 Corded / Industrial / High Density - IDM260-100H - 6050655 для промышленных и гражданских объектов. Оригинальная продукция с гарантией. Подбор аналога, доставка по Москве, СПб и регионам РФ.

есть на складе

Артикул

sick160256

Производитель

Sick

Категория

Ручные сканеры

наши менеджеры Online

Цена: по запросу

Внимание!

Информация о товаре может быть неполной или требовать уточнения. Мы всегда готовы помочь — свяжитесь с нашими специалистами для получения актуальных данных.

Наши отгрузки

Смотреть ещё

Описание

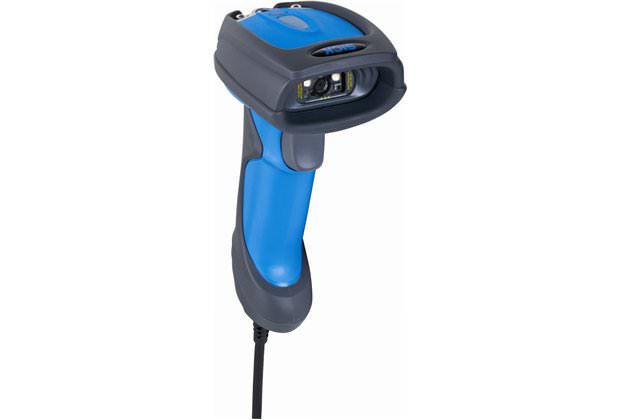

Описание IDM26x / IDM260 Corded / Industrial / High Density - IDM260-100H - 6050655

Features

Field of application:	Industrial
Version:	High Density
Scanner design:	2D code hand-held scanner
Light source:	Lighting LEDs: visible red light (630 nm) aiming laser: visible red light (630 nm)
Code resolution:	?0.08 mm, ?0.13 mm 1) 2)
Reading distance:	30 mm ... 160 mm 3)
Scanning frequency:	60 Hz

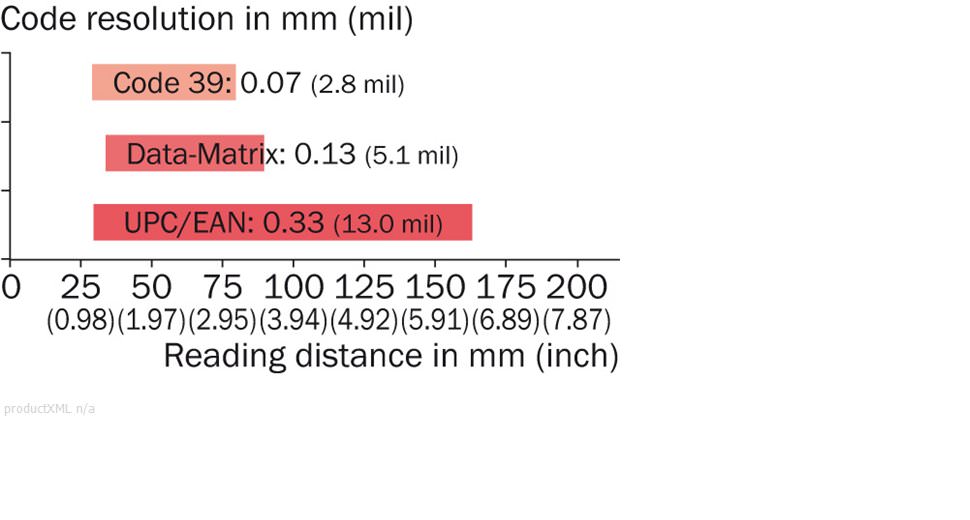

footnote	1) Valid for Code 39 2) Valid for Data Matrix code 3) For details see reading field diagram

Performance

Supported code type:	1D, 2D, Stacked
Bar code types:	Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post, Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 Trioptic, Code 93, GS1 DataBar, GS1-128 / EAN 128, IATA, Interleaved 2 of 5, Matrix 2 of 5, MSI/Plessey, Standard and Industrial 2 of 5, Telepen, UK/Plessey, UPC / EAN / JAN (with addition)
2D code types:	Aztec, Data Matrix, MaxiCode, MicroQR-Code, QR code
Stacked code types:	Codablock, Code 16K, Code 49, Composite, MicroPDF417, PDF417

Interfaces

Function (serial):	RS-232 TTL
Protocol (Ethernet):	TCP/IP (optional via external connection module CDM + CMF), PROFINET (optional via external connection module CDF600-2), EtherCAT (optional via external connection module CDF600)
Remark (Ethernet):	Optional via external connection or fieldbus module
Remark (PROFIBUS DP):	Optional via external connection module (CDF600-2)
Remark (DeviceNet):	Optional via external connection module (CDM + CMF)
Function (PS/2):	Keyboard wedge
Function (USB):	Keyboard wedge, COM-Port emulation
Bluetooth:	-
Optical indicators:	2 LEDs (operational status, good read)
Acoustic indicators:	Beeper, disengageable
Vibration:	Yes
Configuration software:	IDM Setup Tool

Mechanics/electronics

Operating voltage:	5 V DC± 5 %
Power consumption:	Operation (vibration activated): ? 335 mA, Operation (vibration deactivated): ? 285 mA, Standby: ? 150 mA
Housing color:	Blue, gray
Enclosure rating:	IP 65
Weight:	208 g, without cable
Dimensions:	104 mm x 76.3 mm x 176 mm

Ambient data

Ambient operating temperature:	-20 °C ... +50 °C
Storage temperature:	-40 °C ... +70 °C
Permissible relative humidity:	95 %, non-condensing
Shock resistance:	50 drops From 2 m height on concrete
Ambient light immunity:	100,000 lx
